Severe Operational Challenges of Continuous Casting Machine Oscillators
- High-Speed Floating: Continuous casting machine (CCM) mold oscillators operate under high-speed floating conditions to prevent steel sticking.
- 5 Extreme Aggressions: Connecting elements must simultaneously endure high pressure, high temperature, high vibration frequencies, and extreme wear resistance.
- Critical Failure Risks: Generic rubber expansion joint alternatives fail rapidly, causing water leaks, mold damage, and millions in unplanned downtime.
The Costly Pain Points of Traditional Flexible Joints in Steel Mills
- 1. High-Frequency Fatigue Cracking: Standard rubber flexible joint linings split open under persistent, relentless mechanical oscillation.
- 2. Accelerated Friction Wear: Constant high-speed floating and repeated friction grind down inner rubber layers instantly.
- 3. Steam and Ambient Heat Aging: High ambient heat combined with surrounding steam causes low-grade polymers to harden and burst.
- 4. Pressure Surge Blowouts: Severe dynamic water pressure shocks easily rupture standard connectors lacking multi-layer reinforcing reinforcement.
ย SONGJIANGFLEX Premium Rubber Compensator: The Ultimate Import Substitute
- Proven R&D Partnership: SONGJIANGFLEX has co-developed this specialized rubber compensator alongside leading domestic steel mills.
- International Brand Replacement: Engineered specifically as a premium, cost-effective substitute for world-renowned international brands.
- Proprietary Wear Compound: Formulated with an advanced rubber compound designed explicitly for high-speed floating and repeated friction.
- Zero Leakage Guarantee: Precision vulcanization guarantees absolute sealing safety under severe, non-stop steel mill environments.

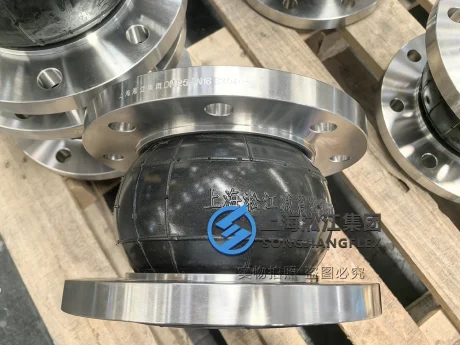

ย Key Technical Features of SONGJIANGFLEX Specialized Rubber Compensator
- High Amplitude Tolerance: Engineered to seamlessly absorb dynamic movement amplitudes of $\ge \pm$7mm.
- Extreme Vibration Frequency: Rated to operate continuously under intense vibration frequencies up to 350 cycles/min.
- Robust Pressure Rating: Reliable working pressure of 1.6MPa with a proof test pressure reaching 2.5MPa.
- Thermal Resilience: Perfectly handles cooling water mediums at 50ยฐC amid ambient steam temperatures of 30โ80ยฐC.

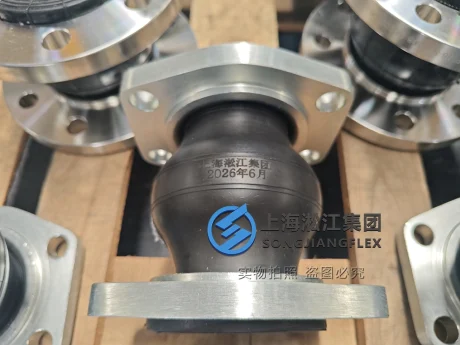

- Fully Customizable Design: Tailored dimensions and flange specifications to match various international continuous casting machine designs.

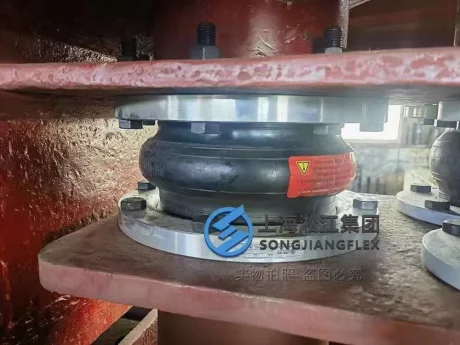

Proper Installation to Maximize Rubber Compensator Service Life
- Step 1: Alignment Verification. Check the casting machine interface alignment precisely before securing the rubber flexible joint.
- Step 2: No Forced Stretching. Never stretch the rubber compensator to force a fit during installation.
- Step 3: Uniform Flange Torque. Tighten bolts in a star pattern across multiple stages to avoid localized rubber pinching.
- Step 4: Regular Inspection. Monitor the high-wear friction zones periodically during routine steel mill maintenance shutdowns.
