Crucial Stress Dynamics in Underground Buried Fluid Networks
-
- Subterranean Operational Hazards: Underground civil infrastructure and industrial drainage networks face severe geological forces completely absent in above-ground piping installations.
- Differential Earth Displacement: Heavy soil backfill pressure, seasonal water table fluctuations, and unpredictable seismic shifts subject underground mainlines to continuous, non-uniform ground settlement.
- Rigid Material Deadlock: When rigid metallic or fiberglass pipe strings cross varying soil profiles, the local earth movement introduces fierce shear forces, demanding highly flexible underground connecting components capable of extensive multi-dimensional flexing.
Why Standard Single-Arch Fittings Fail in Underground Environments
-
- 1. Deflection Limits of Single-Sphere Designs: Standard single-sphere bellows feature very limited axial elongation and lateral movement allowances. When massive soil shifting exceeds these built-in mechanical thresholds, the joint locks up, transferring the entire tensile load onto the pipe joints and causing a sudden, catastrophic line breach.
- 2. Soil Overburden Overload: Mass-produced molded expansion joints lack the structural resilience needed to hold their geometric profile under meters of compacted soil weight. The external load forces the single arch to collapse inward, causing fluid turbulence, increased flow resistance, and premature elastomer tearing.
- 3. Underground Moisture & Foreign Particle Intrusion: Buried environments are perpetually damp, acidic, or saline. Without proper external barrier security, wet soil particles, sand, and subterranean minerals pack tightly into the moving valleys of the rubber body, grinding down the polymer during expansion cycles and accelerating cracking.
Structural Engineering Profiles of Multi-Arch Rubber Compensators

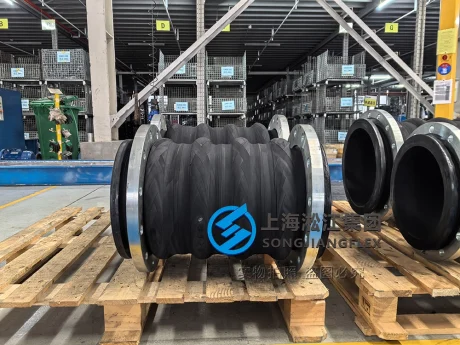

- High-Deflection Geometry: By incorporating a consecutive series of multiple arches, this specialized multi-arch rubber compensator safely absorbs massive cumulative lateral offsets and major structural settlements that would rupture ordinary connectors.
- Dynamic Flexibility: The multi-convoluted matrix acts as an active mechanical hinge underground, allowing the piping string to contour smoothly to localized earth subsidence without restricting fluid flow.
- Engineered Protective Outer Layering: Premium deep-burial applications utilize a heavy-duty, protective plastic wrap barrier tightly bound around the exterior rubber profile. This protective film functions as a sliding shield against the surrounding soil matrix, completely blocking damp gravel, mud, and abrasive grit from filling the arch valleys, while protecting the core polymer from direct contact with corrosive soil chemicals.
