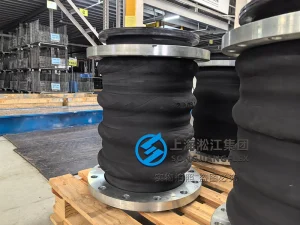

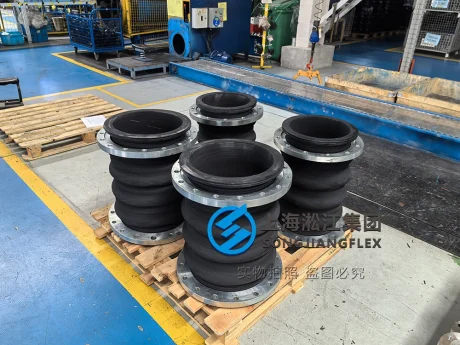

DN350 PN10 Multi-Arch Custom Flexible Joint – 600mm Long-Reach Hand-Built NR with Thick Zinc Coated Flanges

SKU: WCR-DN350-NR-PN10-HDG-Hand-Built

Model TypeWCR-L
Size(DN)DN350
Pressure RatingPN10
Bellow MaterialNR
Flange MaterialHDG Carbon Steel
Temperature Range0℃-80℃
Working MediumSlurry/Mud
SealingRing Face Sealing
LengthCustom 600
FeatureMulti-Arch/ High Movement
ManufacturingManufacture according to the drawing

Product Description & Specifications

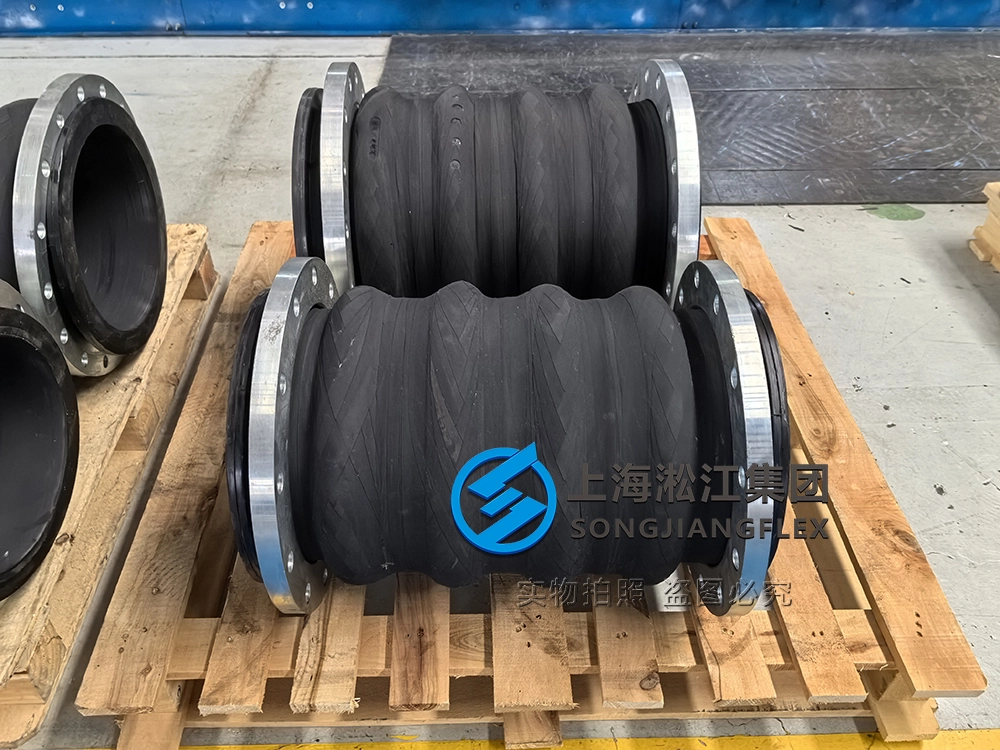

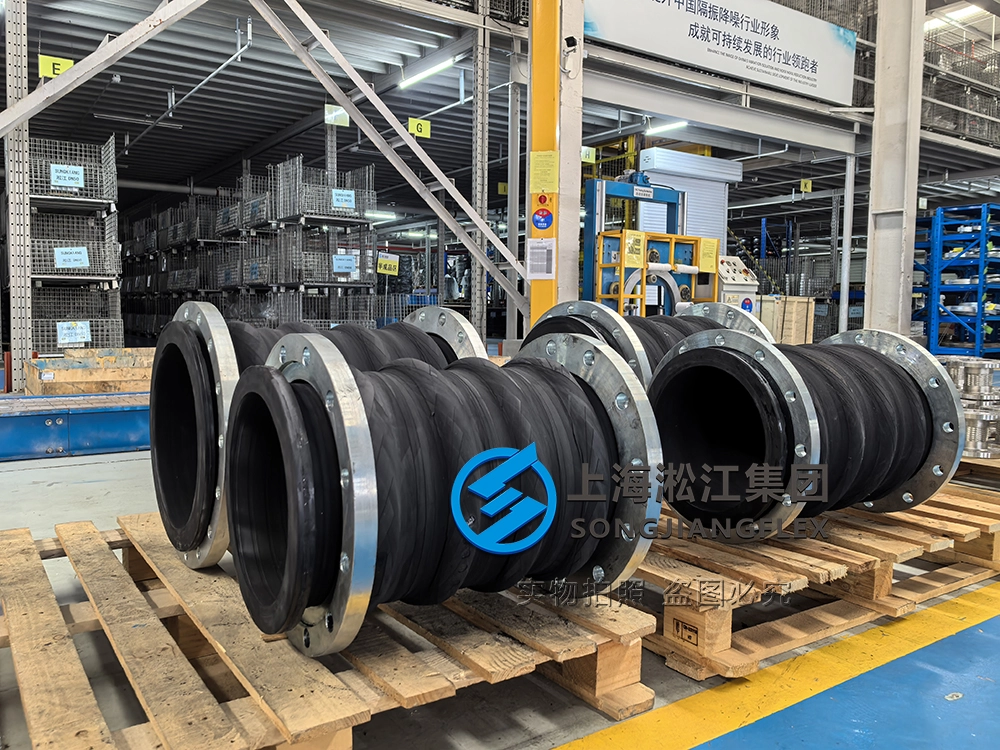

Product Overview

The DN350 PN10 Multi-Arch Custom Flexible Joint is a high-performance engineering solution specifically designed for infrastructure projects facing significant ground settlement or soil subsidence. With an extended 600mm face-to-face length and a specialized Multi-Arch profile, this rubber expansion joint provides an industry-leading range of movement, absorbing massive axial, lateral, and angular offsets that would rupture standard piping.
 To ensure long-term durability in buried or outdoor environments, the flanges feature a thick zinc coating for superior corrosion resistance, providing a robust barrier against moisture and oxidation.

Key Features

  • Engineered for Settlement: The multi-arch geometry is purpose-built to solve critical pipeline settlement problems, offering much higher displacement capacity than standard single or double sphere joints.
  • 600mm Long-Reach Design: The extended length allows for a smoother distribution of stress across the bellows, significantly increasing the fatigue life under constant soil movement.
  • Thick Hot-Dip Galv. Flanges: Specifically treated with a heavy-duty zinc layer to ensure the joint outlasts the surrounding infrastructure in corrosive soil conditions.

Applications

  • Municipal Water Mains: Connecting rigid pipelines across areas prone to geological subsidence.
  • Bridge-to-Land Transitions: Absorbing the differential movement between fixed structures and settling embankments.
  • Waste Water Treatment Plants: Protecting large-diameter DN350 lines from foundation shifts.
  • Industrial Cooling Loops: Where heavy equipment vibration meets potential soil instability.

FAQ

Q: How does this custom multi-arch flexible joint solve major pipeline settlement issues?
A: Solving ground settlement requires more than a standard fitting; it requires an engineered rubber compensator designed for extreme dynamics. We address this through:
  • Multi-Arch Displacement Distribution: By increasing the number of arches over a 600mm span, we distribute the mechanical strain. This prevents the rubber from over-stretching at a single point, allowing the pipeline to “bend” safely with the settling earth.
  • Hand-Built Structural Integrity: Unlike molded joints that have uniform thickness, our hand-built custom flexible joint allows us to vary the wall thickness and reinforcement density at the arch roots, where stress is highest during a settlement event.
  • Corrosion-Proof Longevity: Settlement often occurs in damp or underground environments. Our thick zinc coating on the flanges ensures that while the ground moves, the structural connection remains intact and free from rust-induced failure for decades.

SEO

DN350 PN10 Multi-Arch Custom Flexible Joint - 600mm Long-Reach Hand-Built NR with Thick Zinc Coated Flanges

High-displacement DN350 multi-arch custom flexible joint for pipeline settlement. 600mm hand-built NR design with thick zinc coating for superior corrosion resistance. Engineered to solve critical ground subsidence issues.

Product SKU: WCR-DN350-NR-PN10-HDG-Hand-Built

Product In-Stock: InStock

Technical Specifications

ParameterValue
Nominal DiameterDN350((14inch)
Working PressurePN10
Test Pressure1.5MPa
Temperature Range0℃-80℃
Axial Extension80mm
Axial Compression60mm
Lateral Deflection300mm
Angular Deflection15°
Flange StandardGB/T 9124.1-2019
