High-Fatigue DN200 Rubber Expansion Joint Rated for ±10mm Mold Oscillation and Dual-Zone Temperature (Internal 80°C / External 100°C)
Product Overview

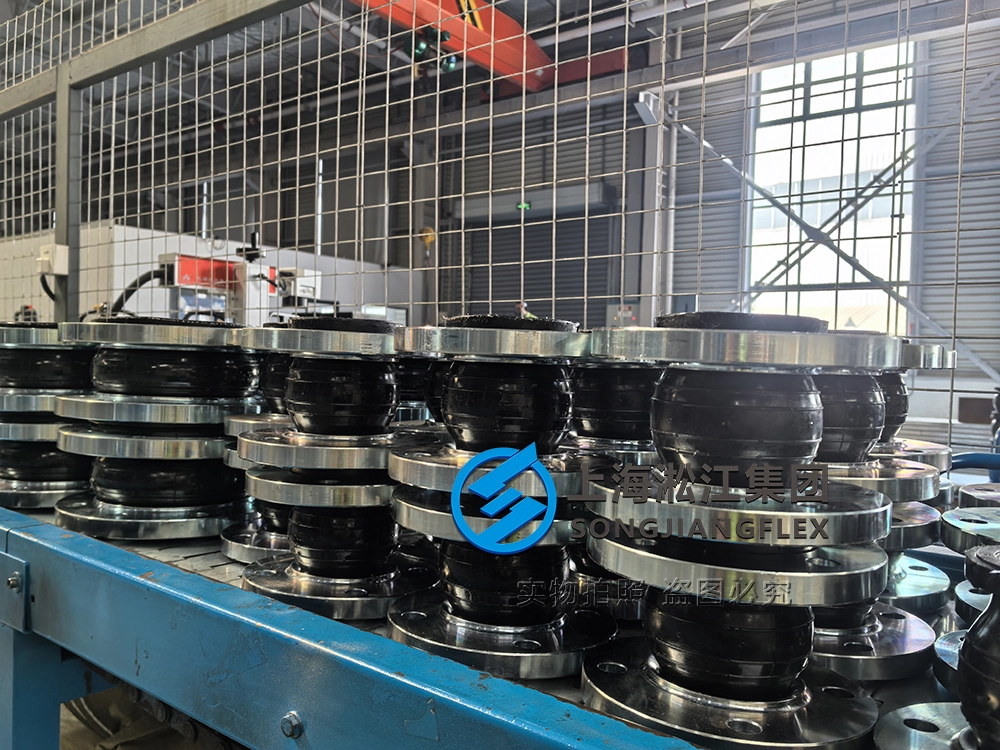

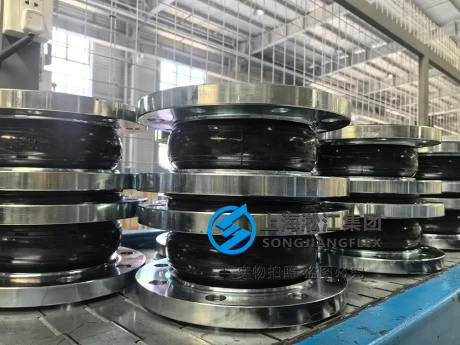

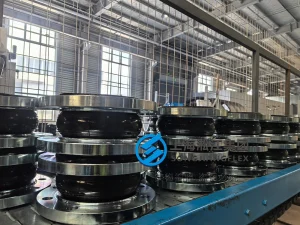

This DN200 PN16 rubber expansion joint is specifically formulated and reinforced for the extreme fatigue and non-sinusoidal movement profiles of steel plant continuous casting mold (crystallizer) oscillation systems. Operating under a severe mechanical amplitude of ±10mm, standard mass-produced expansion couplings fail rapidly due to inner rubber heat build-up. This high-performance rubber flexible joint utilizes a custom-compounded elastomer matrix with high cross-link density, ensuring verified structural integrity exceeding 1,000,000 fatigue bending cycles.
Featuring a specified 150mm face-to-face length, the single-sphere expansion bellow architecture is engineered with asymmetrical dual-zone thermal barriers: the inner liner safely retains 80°C cooling water fluids without polymer swelling, while the external cover layer withstands continuous 100°C ambient radiant heat from neighboring liquid steel tuns. Matched with heavy galvanized carbon steel flanges, this monoblock joint ensures uniform sealing stress distribution without micro-leakage risks under extreme harmonic vibrations. We manufacture according to your exact CAD blueprints to solve congested heavy industry soft-connection challenges with compressed production lead times.
Key Features
-
- 1,000,000+ Bending Fatigue Lifecycle: Proven compound stability under continuous high-frequency heavy-load shearing, fully absorbing the ±10mm displacement without wall structural tearing.
- Asymmetrical Dual-Zone Thermal Performance: Engineered to maintain maximum tensile strength with an inner lining rated to 80°C and an outer covering resilient to 100°C radiant heat.
- Optimal High-Frequency Shock Damping: The resilient single-sphere geometry isolates destructive mechanical oscillation waves from connecting headers, protecting auxiliary valve networks.
- Standardized 150mm Face-to-Face Profile: Engineered to drop seamlessly into existing steel plant mold cooling loops without piping modification or residual flange tension.
- Rapid Production Cycles for Melt Shops: Bypassing standard overseas procurement cycles, our localized cells guarantee short delivery times to prevent critical steel plant blast furnace shutdowns.
Applications
-
- Steel Plant Continuous Casting Molds: Flexible water supply loops absorbing severe high-frequency crystallizer vibrations.
- Heavy Metallurgical Cooling Networks: Isolation of mechanical tremors and thermal expansion on blast furnace body headers.
- Hot Rolling Mill Manifolds: Heavy-duty soft connections on high-pressure descaling pumps and process water distribution skids.
FAQ
Q: How does this DN200 rubber compensator survive continuous ±10mm mold oscillations without catastrophic fatigue cracking?
A: Steel plant casting lines subject piping components to brutal cyclic mechanical stress combined with dual-sided thermal gradients. Our specialized rubber expansion joint addresses these extreme boundaries through:
-
- Elimination of Interlaminar Shear Fatigue: Standard rubber joints suffer structural delamination at ±10mm displacement because the inner cords rub together, generating destructive friction heat. Our hand-wrapped process utilizes high-tenacity cross-plied tire cord layers embedded at optimized bias angles, dispersing local stress concentrations and ensuring the joint achieves more than 1,000,000 full oscillation strokes without rupture.
- Mitigation of Asymmetric Thermal Aging: The environment outside a casting mold features extreme 100°C ambient heat which accelerates rubber vitrification (hardening). Conversely, the inside must continuously handle 80°C processed water. Our composite elastomer formulation prevents the outer shell from brittle cracking while maintaining the elastic sealing properties of the inner channel under constant water hammer.
- 1:1 Custom-to-Drawing Blueprint Correspondence: Heavy steel equipment allows no tolerances for misaligned manifolds. If your melt shop refit drawings mandate non-standard flange drillings (JIS, ANSI, DIN), integrated safety tie rods, or alternative offset dimensions, we deliver exact custom manufacturing to match your CAD parameters perfectly.
- Accelerated Turnaround to Minimize Steelmaking Downtime: When a continuous caster stops due to pipeline failure, financial losses multiply hourly. We execute strict hydrostatic testing protocols while maintaining an agile supply chain to ensure rapid delivery, delivering high-quality replacement joints directly to your maintenance team without long international transit delays.
SEO
PN16 DN200 Continuous Casting Mold Rubber Compensator - 1,000,000+ Cycles Fatigue Resistant Single Sphere Flexible Joint (150mm Length)
DN200 PN16 fatigue-resistant rubber expansion joint for steel plant continuous casting mold systems. Rated for ±10mm oscillation, 1,000,000+ cycles. Fast shipping.
