Product Overview

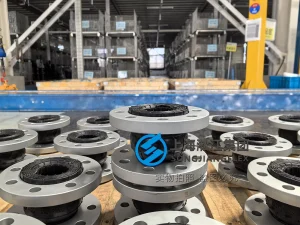

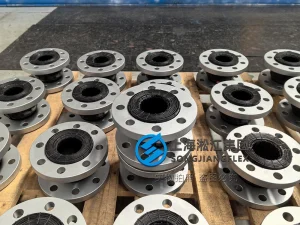

The DN80 PN25 Marine HVAC Rubber Compensator is a premium flexible connector specifically designed for the rigorous demands of maritime refrigeration and air conditioning systems. Rated for 2.5 MPa, it provides a high safety margin for high-head cooling pumps onboard vessels.
To combat the aggressive corrosive nature of saline environments, this unit combines SS304 stainless steel flanges with an advanced Dacromet coating. This dual-layer protection ensures the joint remains rust-free and structurally sound even in engine rooms with high humidity and salt-laden air. The single arch design offers a compact footprint, perfect for the space-constrained piping layouts typical of marine vessels.
Key Features
- High-Pressure Marine Rating (PN25): Specifically reinforced to handle 25-bar working pressure, ensuring reliability during system pressure surges.
- Dual Corrosion Shield: SS304 flanges combined with Dacromet surface treatment provide industry-leading resistance to pitting and salt-spray corrosion.
- Seawater-Resistant EPDM: High-grade EPDM bellows offer excellent thermal stability and resistance to water treatment chemicals used in marine chillers.
- Superior Vibration Isolation: Effectively dampens the high-frequency tremors of marine HVAC compressors, protecting delicate instrumentation and reducing hull-borne noise.
- ABS/DNV Standard Compliance: Designed to meet the stringent safety and durability requirements of international marine classification societies.
Applications
- Marine Chiller Units: Connecting seawater condensers and freshwater evaporators to main piping.
- Onboard Air Handling Units (AHU): Vibration isolation for large-scale cabin climate control systems.
- Vessel Engine Room Cooling: Flexible links for auxiliary cooling water circuits.
- Offshore Platform HVAC: Reliable expansion joints for salt-spray exposed air conditioning networks.
Frequently Asked Questions (FAQ)
Q: Why is the combination of SS304 and Dacromet coating essential for marine HVAC rubber expansion joints?
A: Marine environments are uniquely challenging. While SS304 provides excellent base corrosion resistance, the addition of Dacromet coating serves a critical engineering purpose:
- Elimination of Bimetallic Corrosion: It acts as a sacrificial barrier, preventing galvanic reactions between the stainless steel flange and carbon steel bolts or ship hull structures.
- Extended Salt Spray Life: Dacromet can withstand over 1000 hours of salt spray testing, ensuring the flange remains easy to disassemble during maintenance, even after years in a damp engine room.
- Cost-Effective Durability: It provides the high-end protection of SS316 at a more optimized price point, ensuring the PN25 high-pressure integrity is never compromised by surface rust or pitting.
