Custom Twin-Sphere Marine Rubber Expansion Joint with Full Rubber Encapsulated Flanges | 1:1 Interchange for Trelleborg Series
Product Overview

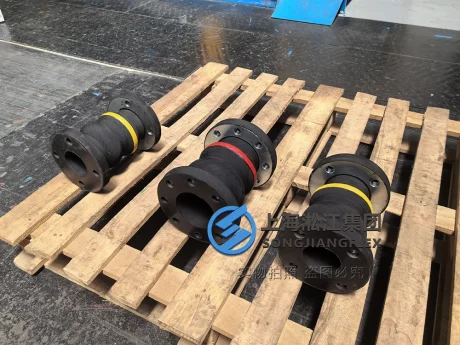

This custom DN80 rubber expansion joint is designed as a direct 1:1 dimension match and performance interchange for Trelleborg marine bellows operating in JIS 5K piping networks. Purpose-built for shipyard new-builds and vessel refits, this twin-sphere rubber flexible joint is configured specifically for shipboard low-temperature cooling freshwater inlet lines where multidirectional displacement and vibration isolation are critical.
The core rubber bellow is manufactured via an advanced layer-by-layer hand-wrapped technique, utilizing high-grade EPDM rubber to provide permanent resistance to freshwater aging, ozone cracking, and mild chemical treatment agents. Featuring a specified 250mm customized length, the twin-sphere geometry delivers twice the axial movement and angular deflection of standard single-sphere joints, minimizing pipeline stress under hull vibrations. Unlike standard turn-up rubber faces, this unit utilizes a full-rubber encapsulation process. The EPDM compound completely covers the sealing face and the outer edges of the galvanized carbon steel flanges through high-pressure vulcanization. This continuous rubber shield ensures zero metal-to-fluid contact, eliminating galvanic corrosion in humid maritime environments. We specialize in custom-to-drawing manufacturing to deliver exact soft-connection solutions based on your CAD files with short lead times.
Key Features
- 1:1 Trelleborg Dimension Match: Manufactured to exact dimensional profiles to serve as a direct plug-and-play replacement for equivalent Trelleborg expansion joints in shipyard refits.
- Full Rubber Encapsulated Flanges: Complete EPDM rubber coverage on the galvanized carbon steel flange faces and outer rims via integrated vulcanization eliminates atmospheric salt-spray pitting.
- Twin-Sphere High Displacement Design: The double-sphere expansion bellow geometry maximizes axial compression, extension, and lateral offset compensation within tight machinery spaces.
- JIS 5K Shipyard Standardization: Flange bolt holes are drilled precisely to Japanese marine piping specifications, ensuring a 100% stress-free fit during urgent dry-dock overhauls.
- Short Turnaround Lead Times: Responsive production lines reduce manufacturing cycles, providing critical customized marine parts far faster than traditional European overseas suppliers.
Applications
- Vessel Low-Temperature Cooling Lines: Flexible soft connections on the intake and circulation manifolds of shipboard freshwater cooling systems.
- Shipyard Dry-Dock Overhauls: Quick-turnaround interchangeable replacements for existing worn flexible links in commercial vessel engine rooms.
- Auxiliary Marine Pump Interfaces: Vibration and misalignment isolation between freshwater circulation pumps and rigid steel pipelines.
FAQ
Q: How does this custom 250mm twin-sphere rubber expansion joint replace Trelleborg bellows in marine cooling lines without modification?
A: Replacing legacy European marine joints during tight dry-dock windows requires absolute dimensional precision and reliable material compatibility. Our engineered rubber expansion joint meets these strict technical demands through:
- Exact Face-to-Face Alignment: We do not supply generalized catalog products. The twin-sphere expansion bellow is built to your specific 250mm length requirements with precise JIS 5K flange dimensions, dropping directly into the existing pipe gap without putting residual tensile or compressive stress on companion cooling pumps.
- Continuous Encapsulated Corrosion Defense: Standard rubber joints leave the galvanized flange edges vulnerable to damp marine salt air and bilge water. Our specialized vulcanization covers the entire flange plate in EPDM, guaranteeing zero rusted surface corrosion and preventing leakage at the flange boundary under heavy marine pressure surges.
- Bespoke Blueprint Customization: Every ship layout has unique spatial constraints. If your shipyard blueprints demand variations in leg lengths, custom vacuum rings, or non-standard flange drillings (ANSI, DIN, or JIS variants), we provide full custom-to-drawing engineering to match your exact CAD files.
- Short Delivery Windows for Fleet Readiness: Waiting months for European logistics delays vessel sailings and increases shipyard penalties. We enforce strict quality controls matching international premium brands, but utilize responsive localized manufacturing to guarantee rapid delivery, helping you complete vessel certification on time.
