ABS & CCS Class Approved Molded Single-Sphere DN150 Rubber Flexible Joint | Custom-to-Drawing Solutions for Heavy-Duty Marine Systems with Short Lead Times
Product Overview

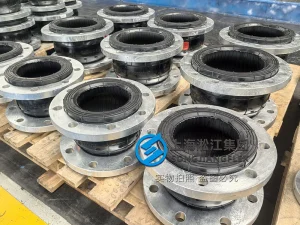

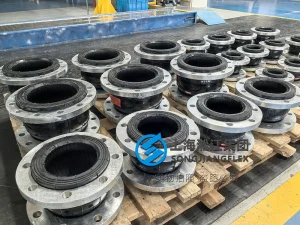

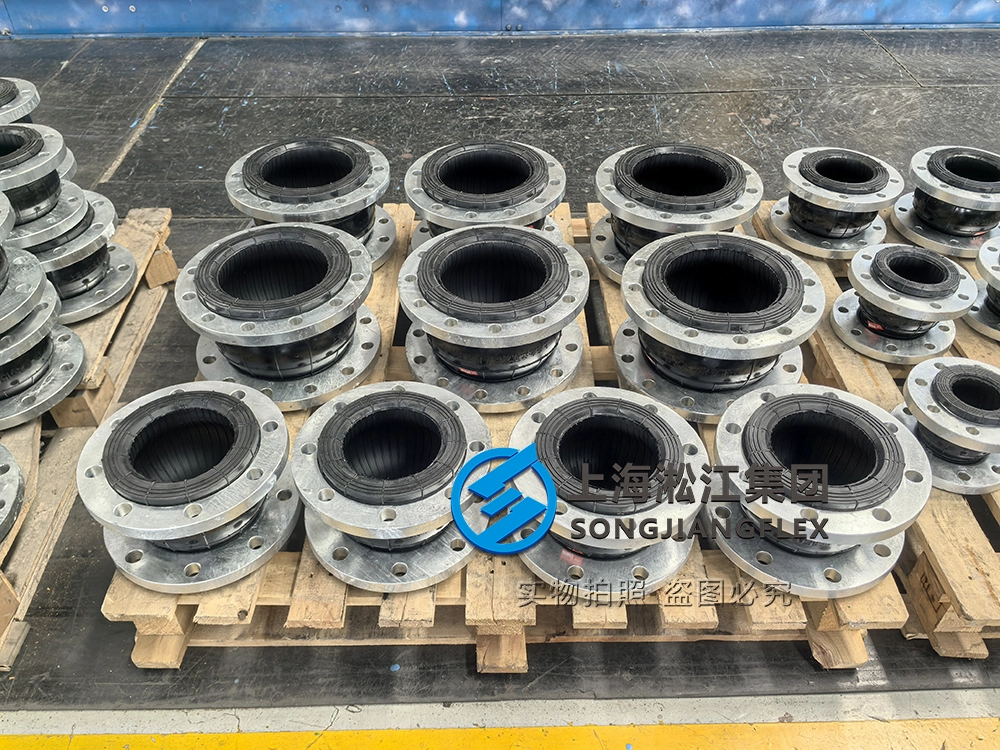

This premium 180mm face-to-face DN150 rubber expansion joint is precision-molded specifically for severe thermal cycling profiles within shipboard high-temperature (HT) freshwater cooling manifolds. Engineered with an optimized single-sphere geometry, this heavy-duty molded expansion bellow acts as a vital structural buffer to isolate massive thermal expansion forces and high-amplitude mechanical vibrations generated by main propulsion engines and large auxiliary diesels. Manufactured via high-pressure vulcanization molds in a class-approved facility holding dual ABS (American Bureau of Shipping) and CCS (China Classification Society) certifications, every component complies with strict global B2B maritime safety, pressure-boundary retention, and full material tracing protocols.
The single-sphere molded structural elastomer is engineered utilizing a high-purity, high-temperature resistant EPDM compound integrated with cross-plied synthetic nylon tire cord reinforcement. The precision compression molding process ensures absolute wall thickness uniformity and a perfectly smooth inner liner profile, minimizing interior fluid friction and preventing localized turbulence or erosion zones common in high-velocity cooling loops.
To prevent flange bending or cracking under dynamic shipboard stress, this unit utilizes heavy-duty No. 20 forged carbon steel flanges instead of cheap cast alternatives. The forged structures are treated with a thick hot-dip galvanized layer to withstand constant bilge humidity and salt-spray exposure. While built to the standard 180mm length, our engineering center specializes in full custom-to-drawing production for specialized drilling offsets. We deliver bespoke soft-connection solutions based on your specific CAD routing plans, combining premium molding quality controls with exceptionally short lead times to avoid costly shipyard refit delays.
Key Features
-
- Molded Single-Sphere Geometry: Streamlined single-vessel configuration offers high burst pressure threshold and limits fluid stagnation inside the convolution.
- Precision Compression Molding: Advanced high-pressure vulcanization molding guarantees flawless geometric tolerances, uniform wall structure, and zero internal structural voids.
- Dual ABS & CCS Class Certification: Fully approved by both the American Bureau of Shipping and China Classification Society, satisfying stringent quality audits for international blue-water vessels.
- No. 20 Forged Steel Flanges: Forged carbon steel construction eliminates structural porosity and micro-cracking risk, providing reliable torque retention across the EPDM face.
- Smooth Fluid Flow Profile: The molded single-sphere configuration creates an ultra-smooth internal bore, drastically reducing hydraulic flow resistance within high-velocity cooling systems.
- High-Temperature EPDM Compound: Formulated to sustain structural geometry and tensile strength under continuous HT jacket water cooling cycles up to design limits.
- Thick Hot-Dip Galvanization: Heavy-duty zinc layer defense protects the forged steel backing rings from aggressive atmospheric salt-spray pitting.
- Rapid Order Turnaround: Optimized factory routing, extensive mold inventory, and robust forging stocks enable us to execute short lead times, supporting urgent vessel overhaul timetables.
Applications & Equipment
-
- Main Propulsion Engine Cooling: High-temperature single-sphere molded rubber flexible joint modules installed at the intake and output headers of main engine jacket cooling water manifolds.
- Auxiliary Diesel Generator Units: Thermal expansion and vibration-damping links routing hot freshwater through high-power auxiliary genset cooling systems.
- Central Heat Exchanger Stations: Reliable single-sphere molded flexible soft connections coupling high-volume cooling water lines to Central Plate Heat Exchangers (PHE).
- Boiler Feedwater Feed Loops: Heavy-duty molded rubber bellow implementations handling thermal expansion on secondary hot water feed loops in auxiliary machinery spaces.
FAQ
Q: What are the engineering advantages of the molded single-sphere configuration for this DN150 rubber expansion joint in marine HT cooling systems?
A: Marine high-temperature freshwater systems operate under continuous thermal stress, mechanical shifting, and high-frequency hydraulic vibrations. Substandard or inconsistent joint construction can trigger catastrophic engine room pressure drops. Our dual-certified single-sphere molded rubber expansion joint resolves these risks through four distinct technical pillars:
-
- Minimized Pressure Drop and Turbulence: Multi-sphere or hand-wrapped shapes can create massive internal fluid drag and micro-vortex generation. Our precision-molded single-sphere geometry provides a highly streamlined and smooth internal bore profile, preventing erosion of the inner EPDM liner when handling high-flow jacket cooling water, extending the service life of the expansion bellow over years of operation.
- Flawless Structural Uniformity via Precision Molds: Hand-wrapped construction can occasionally introduce subtle thickness variations. Our compression molding process forces the high-temperature EPDM and nylon cord matrix into precision steel dies under immense pressure and heat, creating a homogeneous carcass wall that eliminates thin spots and ensures consistent burst performance across every millimeter of the single sphere.
- Verified ABS & CCS Compliance: Holding dual ABS and CCS certifications means this molded joint has successfully passed rigorous independent type-approval testing—including hydrostatic burst margins, structural vacuum limits, and multi-axis displacement tests—ensuring legal, unconditional installation in commercial vessel engine rooms globally.
- Custom Flange Drillings with Compressed Delivery: While the rubber body is standard 180mm molded stock, we provide precise custom-to-drawing flange drilling engineering based on your CAD prints (JIS, ANSI, or DIN offsets). Because we leverage highly efficient molded component production, we maintain rigorous premium quality controls while ensuring short lead times to meet tight dry-dock windows, preventing vessel sailing delays.
