Premium Twin-Sphere Marine Rubber Expansion Joint with Full Rubber Encapsulated Flanges – 1:1 Direct Replacement for Trelleborg Series
Product Overview

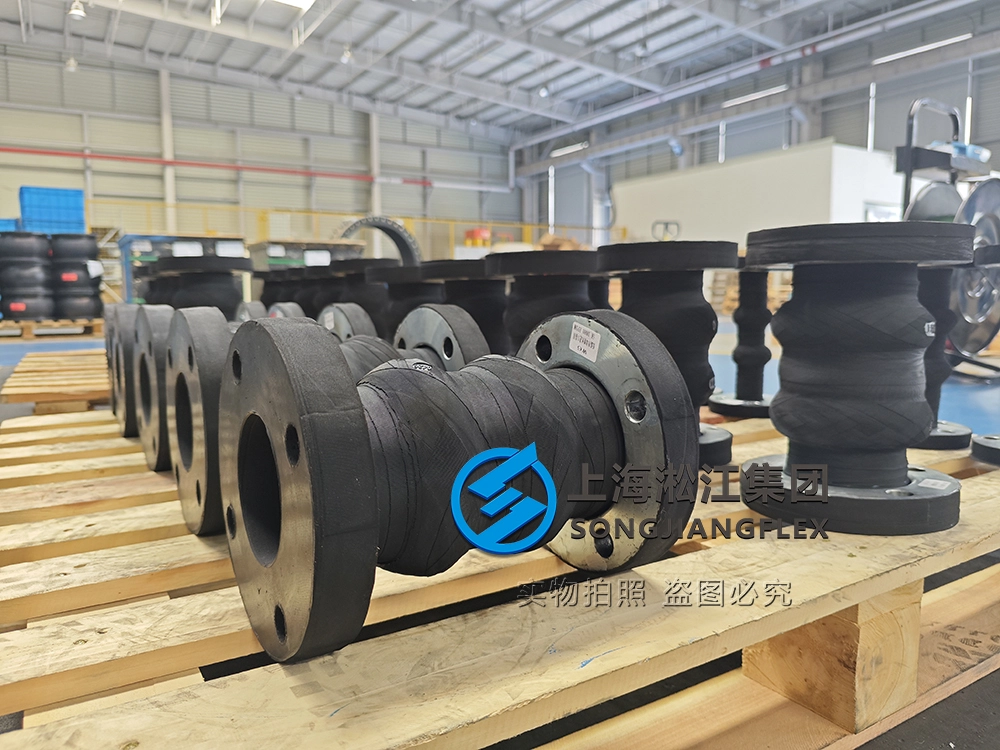

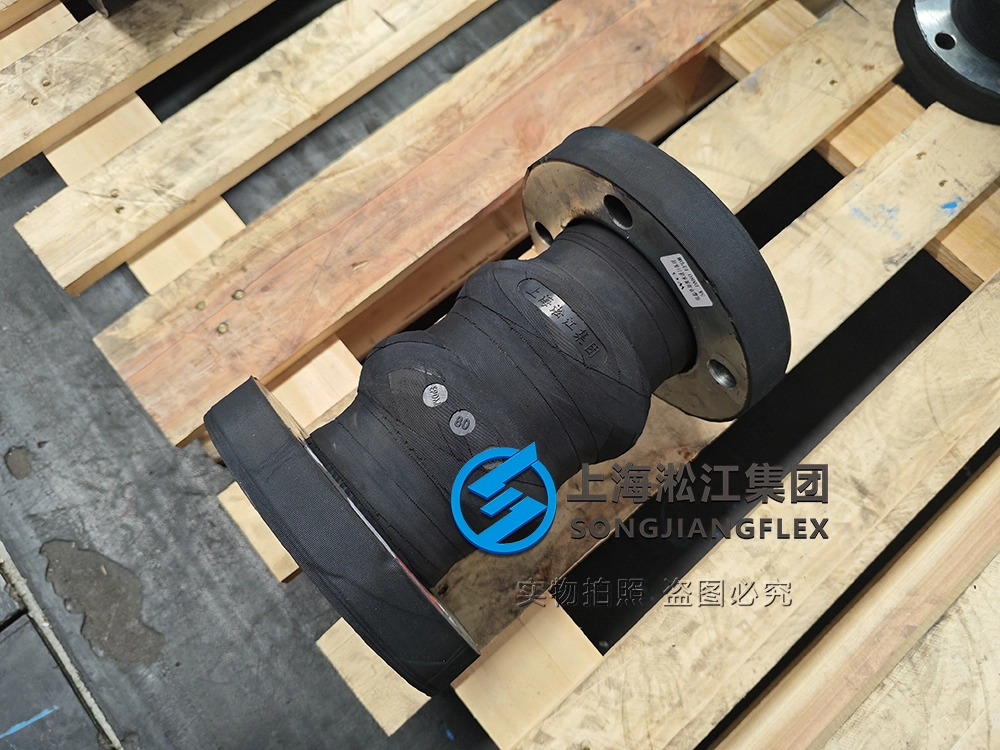

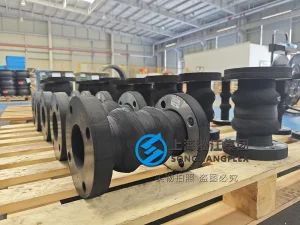

The JIS 10K DN80 Custom 250mm Marine Rubber Compensator is a masterpiece of specialized fluid engineering, developed specifically to meet the rigorous retrofitting and new-build demands of global shipyards. Engineered as a 1:1 premium alternative to Trelleborg rubber expansion joints, this twin-sphere rubber flexible joint serves as a 100% interchangeable drop-in replacement, allowing vessel operators to bypass long European lead times without compromising on maritime safety.
Manufactured via an advanced layer-by-layer hand-wrapped technique, this product features a dual-sphere expansion bellow (premium EPDM) tailored to an exact 250mm customized length to maximize multi-axial movement absorption. Crucially, this joint utilizes a proprietary integrated vulcanization technology with a special rubber encapsulation process, where the EPDM rubber completely encloses both the sealing face and the outer sides of the galvanized carbon steel flanges. This specialized shielding completely isolates the carbon steel core from salty marine environments, eliminating galvanic corrosion and gasket blowouts under continuous hull vibration. We specialize in custom-to-drawing production, delivering high-integrity soft-connection solutions with significantly shorter lead times than traditional premium suppliers.
Key Features
-
- 1:1 Trelleborg Interchangeability: Designed to exact dimensional and performance matrices, our high-quality marine joint serves as a cost-effective, direct replacement for legacy European series.

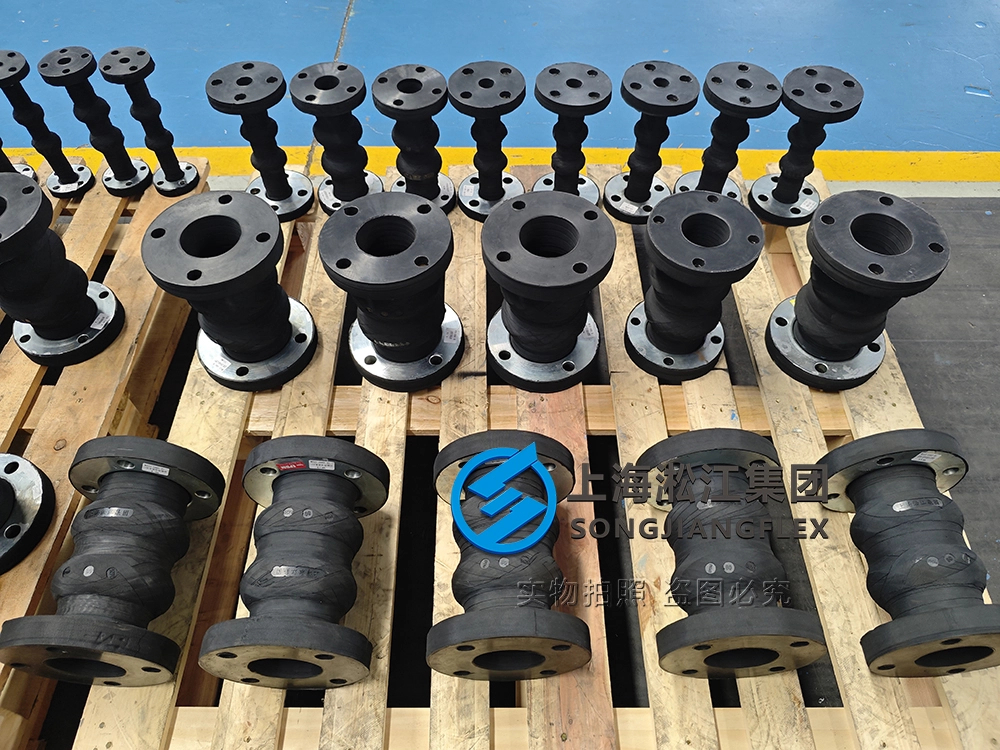

- Full Rubber Encapsulated Flanges: The EPDM rubber seamlessly blankets the flange faces and sides via integrated vulcanization, providing a monoblock barrier that shields carbon steel from seawater pitting.

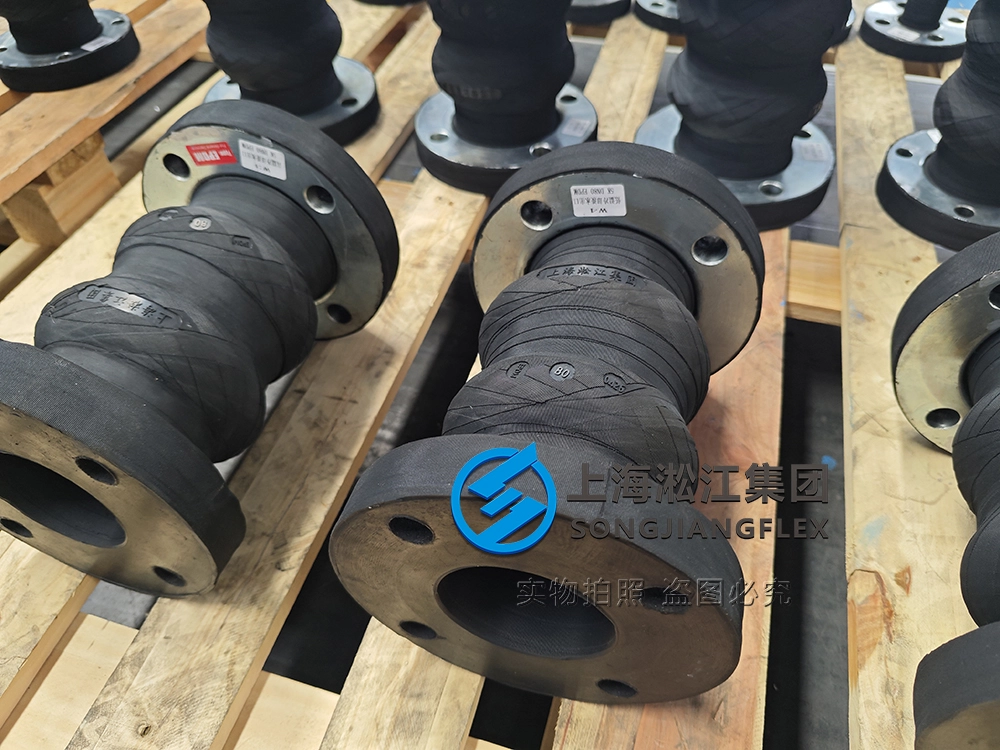

- Twin-Sphere High Displacement Design: The double-sphere geometry provides double the axial extension, compression, and lateral angular compensation of standard single-sphere bellows, ideal for intense engine room harmonics.
- JIS 10K Shipyard Standardization: Precision drilled and hand-wrapped to match Japanese marine piping layouts, ensuring a stress-free fit during emergency dry-dock overhauls.
- Rapid Delivery for Maritime Turnarounds: We bridge the gap between “exotic technical customization” and “speed,” supplying quality-tested, premium compensators much faster than traditional international vendors.
Applications
-
- Shipyard Refits & Vessel Modernization: Direct interchangeable replacement for worn-out Trelleborg flexible connections in existing vessel engine rooms.
- Marine Cooling & Seawater Lines: Providing absolute corrosion-proof piping interfaces on high-salinity ballast and raw-water circulation networks.
- Hull-to-Engine Vibration Isolation: Absorbing the structural twists and high-frequency harmonic shocks generated by marine diesel propulsion systems.
FAQ
Q: How does this custom 250mm twin-sphere rubber compensator deliver a reliable, direct alternative to Trelleborg joints for shipyard refits?
A: Shipyards operate under punishing deadlines where part availability and structural integrity cannot be compromised. Our premium rubber expansion joint satisfies these critical maritime engineering demands through:
-
- Seamless 1:1 Fit with Custom Dimensions: When replacing premium legacy brands like Trelleborg, standard off-the-shelf parts rarely align with the original face-to-face space. Our specialized hand-wrapped process allows us to craft this double-sphere expansion bellow to an exact 250mm length with JIS 10K drillings, ensuring it drops perfectly into your existing shipboard piping layout without forcing or modification.
- Permanent Anti-Corrosion via Rubber Encapsulation: Standard rubber joints leave the outer flange edge exposed to raw seawater and humid engine-room salt spray, leading to rust and sealing bypass over time. Our full-cover encapsulation process completely encases the galvanized carbon steel flanges in EPDM rubber, eliminating metal-to-fluid contact and guaranteeing a lifetime of maintenance-free service.
- Bespoke Custom-to-Drawing Problem Solving: No two vessel machinery setups are identical. If your shipyard blueprints require non-standard flange drillings (JIS, ANSI, DIN), special vacuum reinforcement rings, or custom tie-rod bracket assemblies, we execute 100% precise custom-to-drawing production to deliver the exact soft-connection configuration your naval architects require.
- Premium Quality with Fast-Track Turnaround: Waiting months for European parts during a dry-dock window costs shipowners thousands of dollars per day. We enforce strict tier-1 quality control standards matching international premium brands, while utilizing agile production lines to provide rapid delivery, getting your ship certified and back to sea on schedule.
SEO
JIS 10K DN80 Custom 250mm Marine Rubber Compensator - Double Sphere Flexible Joint with Rubber Encapsulated Flanges | Premium Alternative to Trelleborg
Premium JIS 10K DN80 twin-sphere marine rubber expansion joint. Full rubber encapsulated flanges, 250mm custom length. High-quality alternative to Trelleborg.
Product SKU: WCR-DN80-EPDM-PN16-CS-Double-Arch
Product Brand: SONGJIANGFLEX
Product In-Stock: InStock
