Product Overview
The DN2400 PN6 Condenser Rubber Compensator is a specialized, heavy-duty flexible joint engineered for the high-volume circulating water systems of thermal and nuclear power plants. Utilizing a precision hand-built (hand-layered) winding process, this joint offers superior structural integrity and wall thickness compared to molded alternatives, ensuring long-term reliability for 2.4-meter diameter piping.
Specifically designed for condenser inlet and outlet nozzles, it effectively absorbs thermal expansion and isolates massive pump vibrations. To ensure system safety, each unit is equipped with a heavy-duty control rod system to restrain the immense pressure thrust inherent in large-bore cooling water circuits.
Key Features
- Hand-built Winding Process: The manual layering of high-strength synthetic tire cord and EPDM provides a more robust and flexible carcass, ideal for ultra-large diameters.
- Integrated Thrust Restraint: Heavy-duty control rods (tie rods) prevent over-extension and protect the condenser shell from catastrophic hydraulic forces.
- Optimal Condenser Performance: Minimizes mechanical stress on fragile heat exchanger nozzles, extending the service life of critical plant assets.
- Superior EPDM Compound: Formulated for excellent resistance to heat, ozone, and water treatment chemicals (chlorine) used in cooling towers.
- Vacuum Resistance Capability: Specially reinforced to maintain shape and performance under vacuum conditions common in surface condensers.
Applications
- Thermal Power Plant Condensers: Main flexible connection for circulating water (CW) systems.
- Nuclear Plant Cooling Circuits: High-reliability joints for secondary cooling loops.
- Large-scale Pumping Stations: Vibration isolation for 2400mm intake and discharge headers.
- Desalination Facilities: Providing flexible links for massive seawater intake lines.
Frequently Asked Questions (FAQ)
Q: Why should we prioritize a “Hand-built” (WCR) construction over a molded one for a DN2400 condenser expansion joint?
A: For ultra-large diameters like DN2400 (96″), the hand-built (hand-layered) process is technically superior for three critical reasons:
- Vacuum Resistance: Condenser systems often operate under negative pressure. Hand-built joints allow for the integration of internal steel vacuum rings and thicker reinforcement layers that prevent the bellows from collapsing (sucking in), a common failure in mass-produced molded joints.
- Custom Pressure Thrust Management: At 2.4 meters, even a low pressure of 6 Bar generates massive axial thrust. Our hand-built process uses high-strength synthetic tire cord wrapped at precise angles to provide a higher safety factor and structural integrity.
- Heavier Duty Carcass: We can customize the number of reinforcement plies and the thickness of the EPDM liner based on your specific water chemistry (e.g., high chlorine or silt content), extending the service life to match your plant’s major maintenance cycles.

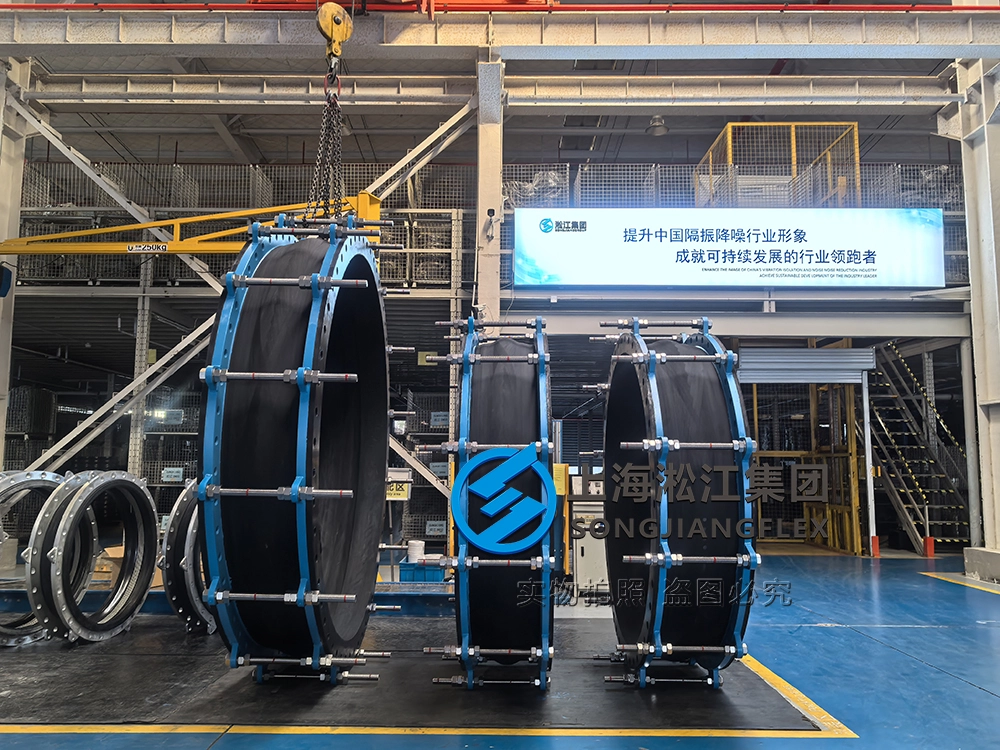

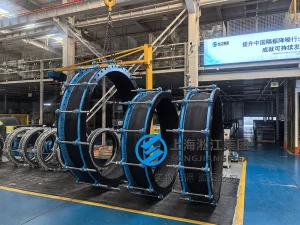

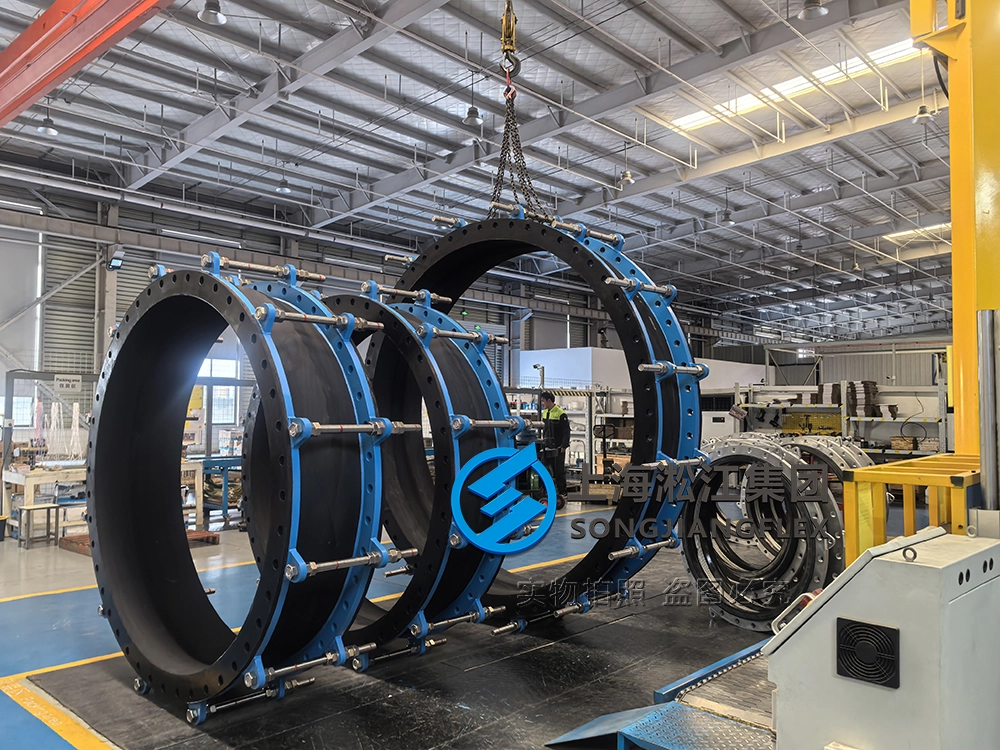

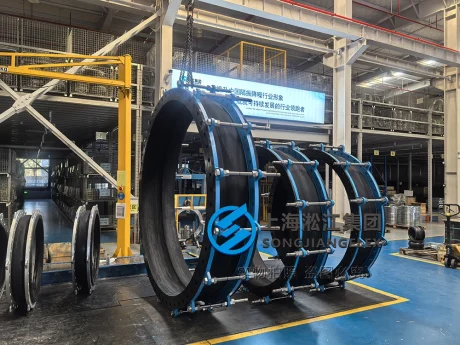

DN2400 PN6 Hand-built EPDM Rubber Compensator for Power Plant Condenser - Carbon Steel Flange & Control Rods
Custom DN2400 PN6 hand-built rubber compensator for power plant condensers. Features reinforced EPDM and control rods to manage massive pressure thrust. High-durability solution for large-scale circulating water lines. Get a quote!
Product In-Stock: InStock
