Hand-Built 5-Arch Large Movement Rubber Flexible Joint | Ring Face Sealing Layout with Integrated Internal Anti-Pullout O-Rings
Product Overview

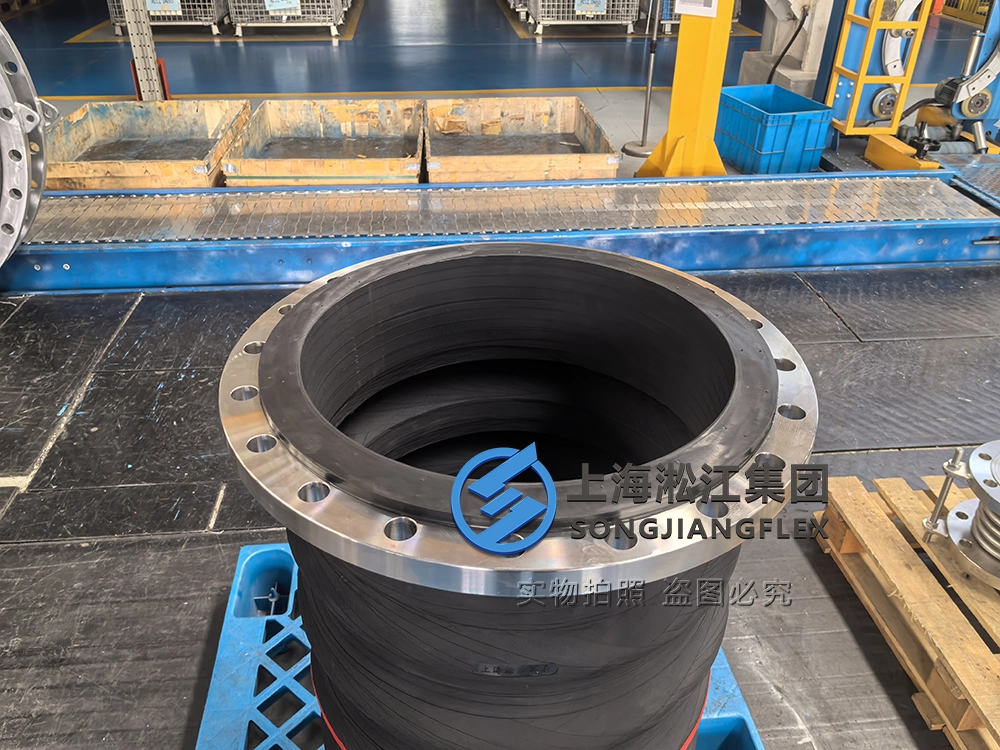

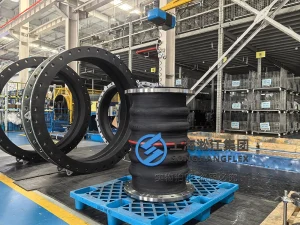

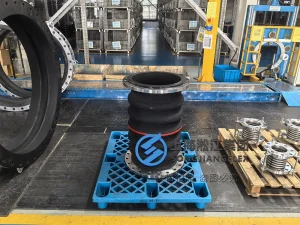

This heavy-duty DN450 (18-inch) hand-built rubber expansion joint is structurally configured for large-scale water treatment infrastructure and chemical processing lines experiencing severe soil settlement or structural misalignment. Engineered with a specialized 900mm face-to-face long-span dimension and an advanced 5-arch geometry, this heavy-duty rubber bellow provides unmatched multidirectional displacement capacity, absorbing massive axial elongation, compression, and lateral shearing forces simultaneously. Operating within a 40-60°C temperature profile under a -0.04MPa (vacuum) to positive pressure fluid cycle, this robust rubber flexible joint safeguards large-diameter headers against structural stress fractures.

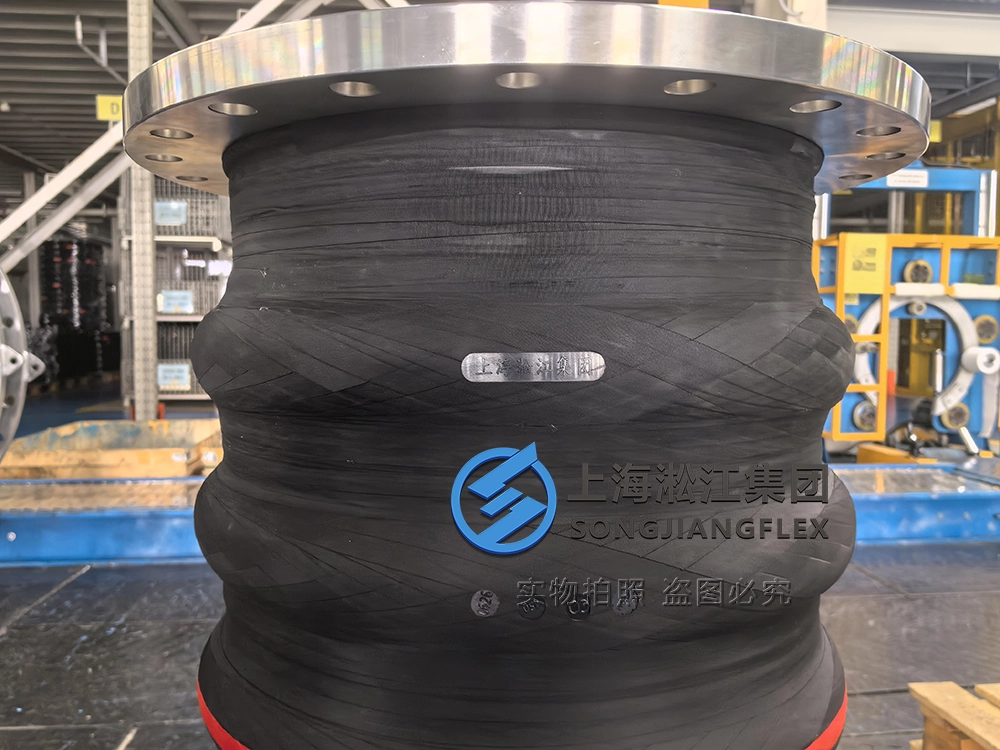

The multi-layered composite body is meticulously hand-built by embedding premium high-tensile synthetic fiber cords and rigid external vacuum-reinforcing steel rings directly within a thick, high-purity EPDM rubber matrix. These structural rings act as an external skeleton between the waves, preventing localized deformation and suction collapse during negative pressure phases. Synthesized from premium elastomers, the liner provides superior chemical resistance against water treated with aggressive chemical agents, dosing additives, and mild acidic/alkaline process effluents.
Departing from traditional full-face rubber designs, this assembly utilizes a high-performance ring face sealing (reduced face) profile. A solid internal anti-pullout steel O-ring core is vulcanized directly inside the narrow sealing rim, establishing a positive mechanical lock within the flange groove to prevent bead unseating under sudden hydraulic surges or extreme lateral offsets. Outfitted with corrosion-resistant Stainless Steel 304 PN10 swivel backing flanges, the backing rings rotate a full 360 degrees to facilitate bolt-hole alignment across wide installation gaps without imparting installing pre-stress to the rubber body.
Key Features
-
- 5-Arch High-Movement Geometry: Multi-arch architecture maximizes multi-axis compensation, providing superior deflection limits against soil and foundation settlement across long spans.
- Central Vacuum Reinforcing Rings: External steel reinforcing rings provide rigid structural stabilization, preventing suction collapse and wall flattening under -0.04MPa vacuum conditions.
- Precision Ring Face Sealing Layout: Small-rim sealing design reduces seating torque requirements while offering superior high-pressure tightness without requiring external gaskets.
- Embedded Anti-Pullout O-Ring Core: Rigid internal core vulcanized within the rubber sealing bead locks into the backing ring groove, preventing structural pull-out during multi-axis shifts.
- Premium EPDM Chemical Resistance: Specialized elastomer liner withstands water treated with chemical agents, chlorine additives, and dosing stabilizers within a 40-60°C window.
- Stainless Steel 304 Swivel Flanges: Inert SS304 PN10 backing rings eliminate atmospheric rust and galvanic wear while spinning freely for rapid, stress-free field bolting.
- Vibration Dissipation and Noise Attenuation: Heavy-duty elastomeric construction isolates high-amplitude mechanical vibrations generated by high-capacity water intake and chemical transfer pumps.
Applications & Equipment
-

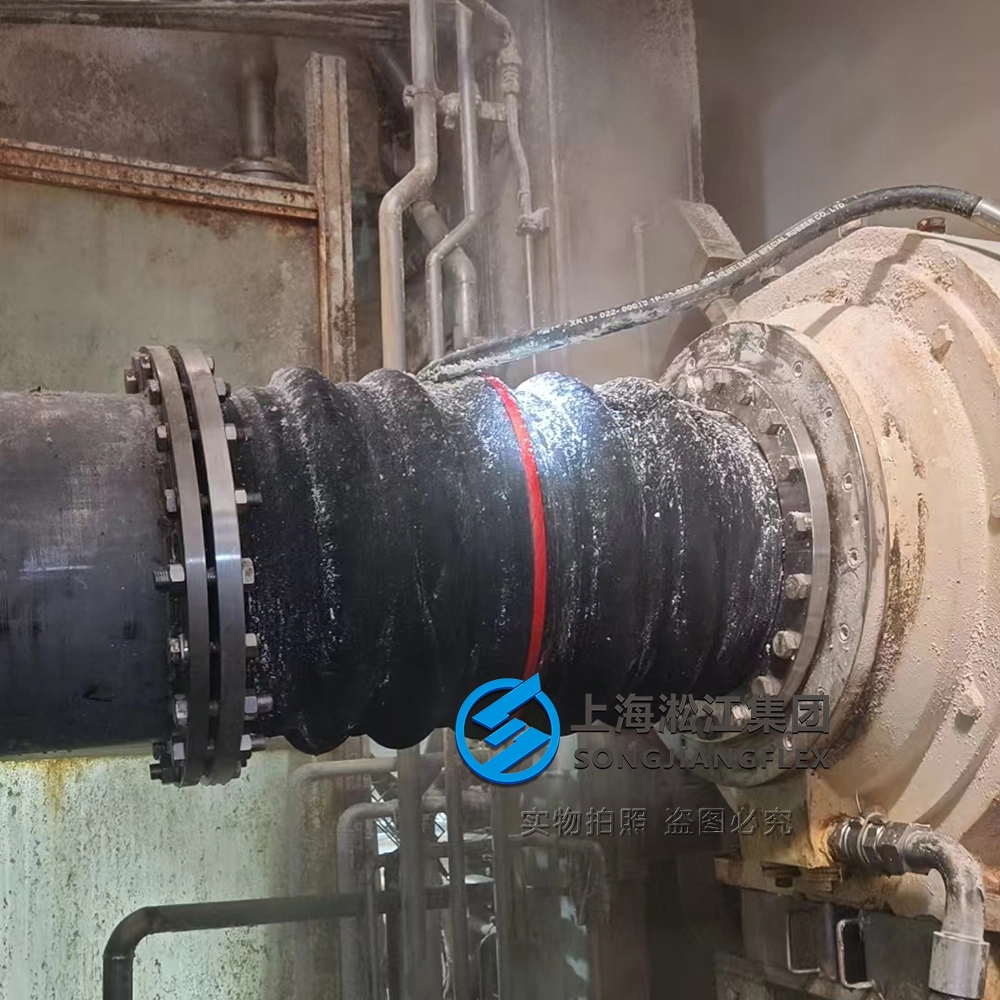

- Municipal Water Treatment Intakes: Flexible long-span interfaces bridging raw water supply intake headers across structural joint interfaces subject to ground shifting.
- Chemical Dosing Facility Discharges: Chemical-resistant soft connections joining chemical agent mixing tanks to secondary distribution manifolds.
- Cooling Tower Basin Returns: Large-diameter flexible links absorbing thermal expansion and differential settling between concrete basins and metallic pump headers.
- Desalination Plant Suction Lines: Vacuum-resistant 5-arch EPDM rubber bellow installations managing chemical-treated salt-water transfer systems on pump intake manifolds.
FAQ
Q: How does the ring face sealing design with embedded O-rings protect this 5-arch hand-built rubber expansion joint from vacuum suction collapse and pull-out failure?
A: Transitioning long-span, large-diameter piping arrays over ground boundaries prone to shifting generates immense bending moments and shearing forces. Standard short-body connectors do not possess the geometric flexibility to absorb large differential offsets, which risks tearing the elastomer layer or breaking metallic pump nozzles. Our hand-built 900mm long flexible rubber joint is designed to address these complex structural and fluid vulnerabilities through three dedicated technical pillars:
-
- Multi-Axis Compensating 5-Arch Geometry: The hand-built 5-arch profile redistributes incoming angular and lateral shear stresses across five independent geometric arcs. By expanding the face-to-face distance to 900mm, the elastomer wall undergoes uniform deflection rather than concentrated point stress. This architecture allows the piping network to accommodate severe differential settling and continuous thermal movement without sacrificing structural integrity.
- Vacuum-Rated Structural Reinforcement: Handling fluids under negative pressure (down to -0.04MPa) on pump suction lines poses a severe risk of inward bellow collapse (suction crushing). Our hand-wrapped construction process integrates solid external steel reinforcing rings directly between the corrugations. This rigid structural skeleton counteracts negative atmospheric forces, maintaining a smooth, uninhibited internal bore and preventing suction flattening under continuous 40-60°C fluid streams.
- Positive Mechanical Ring Face Interlock: Massive lateral shifts pull the rubber bead away from the metal backing plate. We resolve this through a specialized ring face sealing (reduced face) layout, embedding a high-durability internal steel O-ring core inside the narrow sealing rim during vulcanization. This creates a rigid mechanical shoulder that locks directly into the precision-machined groove of the SS304 PN10 backing flange. When the system undergoes tension or vacuum cycles, the flange physically clamps onto this shoulder, completely eliminating the risk of the rubber bellows pulling out from the metal assembly.
