Hand-Built Straight-Bore Copper Slurry Rubber Flexible Joint | Full-Face Vulcanized Flange Layout with Anti-Scouring Internal Liner
Product Overview

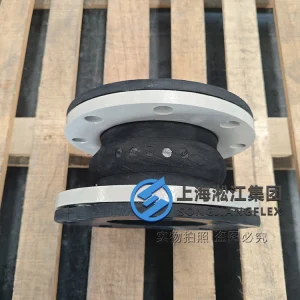

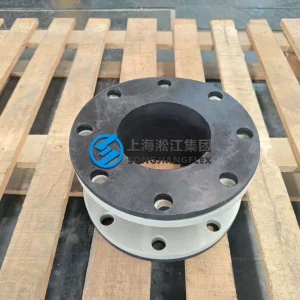

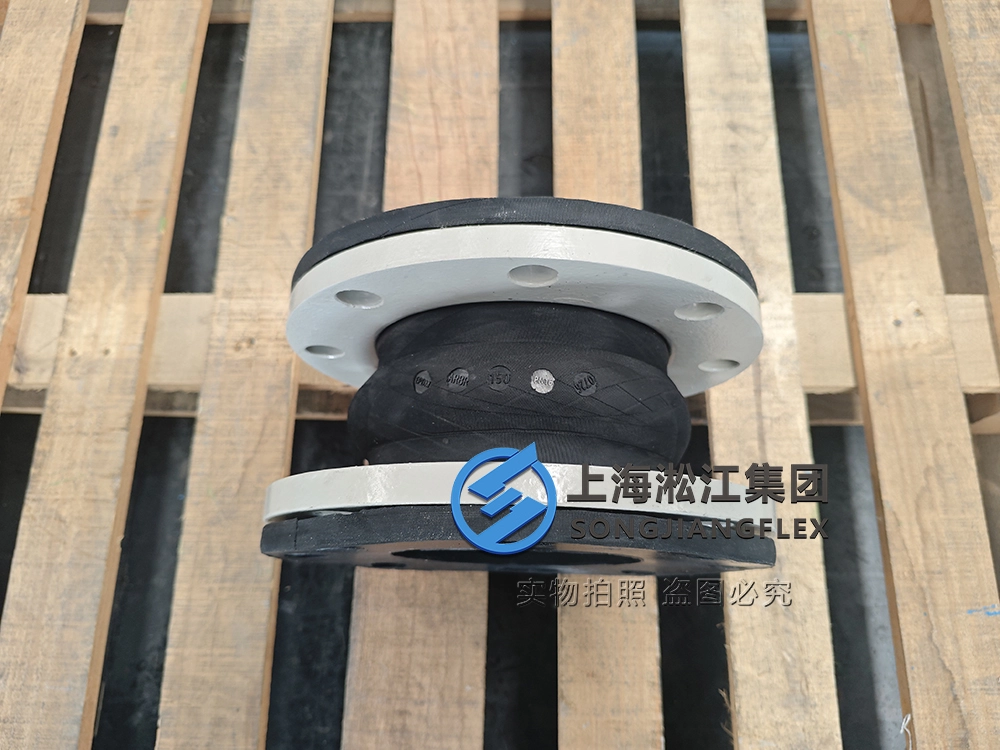

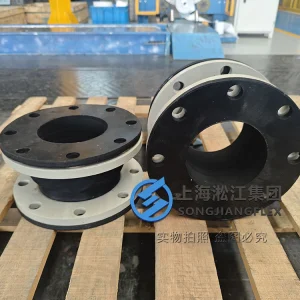

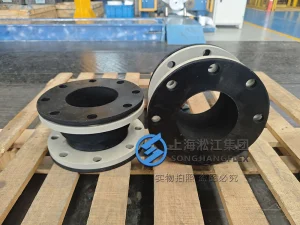

This heavy-duty DN150 (6-inch) hand-built rubber expansion joint is structurally engineered for high-abrasion ore dressing networks, copper concentrator tailing pipelines, and mineral pulp disposal headers experiencing aggressive particle impingement. Featuring a specialized smooth-bore (straight internal wall) architecture and a 150mm face-to-face dimension, this multi-ply expansion bellow completely eliminates internal flow turbulence and localized eddy currents during heavy mineral media transit. Operating under standard ambient temperatures, this compact rubber flexible joint acts as the permanent structural shock absorber to protect rigid processing equipment manifolds from continuous slurry pump vibrations.

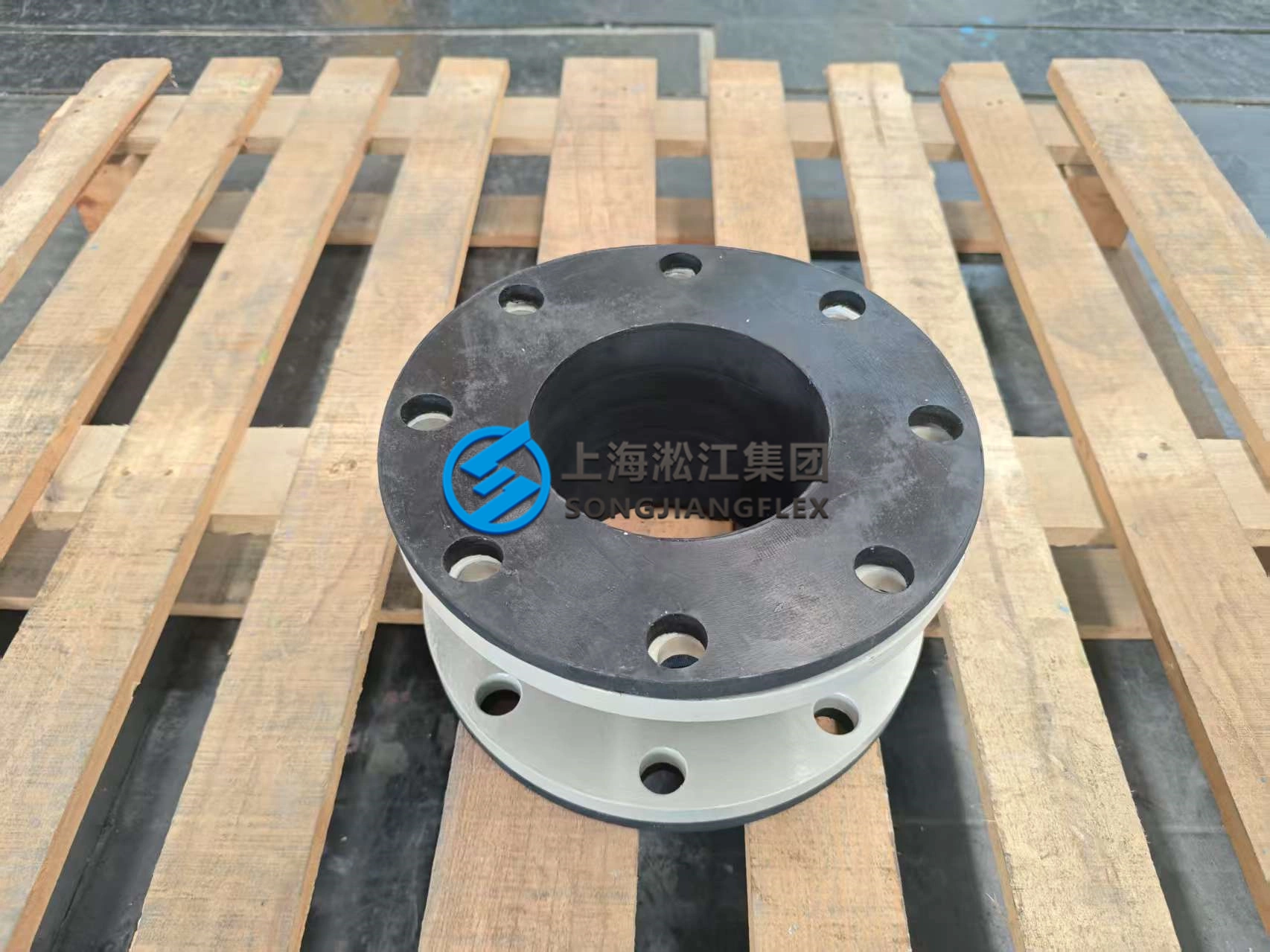

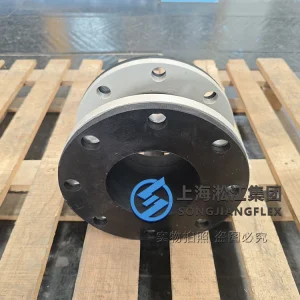

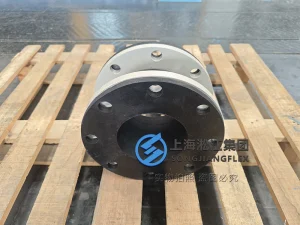

The structural matrix of the rubber bellow is hand-built by layering cross-plied, high-tensile synthetic cord fabrics within a dual-rubber composite envelope. The thick interior liner is synthesized from a highly specialized, ultra-high-density wear-resistant rubber compound formulated to survive the relentless scouring of sharp copper mineral crusts and abrasive tailings. The outer cover features premium EPDM rubber, providing outstanding resistance to atmospheric ozone cracking and environmental process splattering. To withstand the relentless erosion of fast-moving slurry streams without rim failure, the unit implements a full-face sealing layout. The continuous rubber liner extends completely over the flange face and around the bolt holes of the painted carbon steel ASME 150LB flanges, vulcanizing them into a single monolithic, gasketless component that protects the metallic backing rings from fluid contact.
Driven by premium B2B quality control parameters, our engineering division supports comprehensive custom-to-drawing fabrication. We modify specific internal liner compositions, unique offset dimensions, and non-standard flange drillings based directly on your submitted CAD prints, ensuring compressed production lead times to prevent expensive mineral enrichment plant stoppage penalties.
Key Features
- Turbulence-Free Smooth-Bore Architecture: Straight-tube interior configuration eliminates the conventional arch cavity, preventing solids accumulation, localized sediment vortex zones, and premature wall wear-through.
- Anti-Scouring Wear-Resistant Interior Liner: Specialized high-purity rubber formulation delivers exceptional mechanical abrasion resistance against hard copper pulp grit and heavy tailings.
- Monolithic Full-Face Vulcanized Flanges: Continuous EPDM/wear-resistant wrapper covers the entire 150LB flange face, ensuring drop-tight sealing and isolating carbon steel backing rings from fluid erosion.
- Weatherproof External EPDM Envelope: Heavy-duty EPDM outer layer repels environmental aging, moisture exposure, and mild chemical washdown common in mill sub-floors.
- High-Density Fabric Reinforcement Infrastructure: Multi-ply high-tensile synthetic cord skeleton maintains geometric stability under systemic surge loads, preventing structural de-lamination.
Applications & Equipment
- Centrifugal Slurry Pump Discharges: Heavy-duty flexible links isolating high-velocity pump nozzle pulsations from large-diameter mill supply manifolds.
- Hydrocyclone Underflow Line Buffers: Wear-resistant rubber bellow modules managing high-density mineral waste streams discharged from cyclone classification clusters.
- Ore Flotation Machine Bridging: Flexible links absorbing structural shifting and vibration between copper flotation tank bays and main header pipelines.
- Thickener Bottom Discharge Ports: Non-standard reduction links accommodating thermal movement and differential settling on high-density solid sludge lines.
FAQ
Q: Why is a hand-built smooth-bore configuration with full-face sealing critical for this DN150 rubber expansion joint in a copper slurry pipeline?
A: Directing high-density mineral pulps through standard piping networks creates intense directional abrasion and severe vibrational wear. Standard molded single-sphere connectors feature an internal arch cavity that acts as a collection pocket for heavy ore particles. This causes a massive localized vortex that rapidly erodes the elastomer wall down to the canvas framework, triggering sudden blowout failure. Our hand-built straight-bore rubber flexible joint resolves this processing hazard through three dedicated technical pillars:
- Elimination of Vortex Erosion via Straight Bore: Our hand-wrapped construction features a completely flush, Smooth-Bore Layout design that matches the inner diameter of the parent line. By eliminating the inner arch profile, the fluid velocity profile remains entirely uniform. Solid copper tailings pass through the joint in a smooth laminar trajectory, completely preventing the turbulent particle spinning that destroys standard bellows.
- Total Flange Protection via Full-Face Vulcanization: Copper slurry dripping and harsh mill washdowns trigger rapid crevice corrosion on exposed metal backing plates. Our full-face sealing layout completely seals the painted carbon steel 150LB flanges beneath a continuous vulcanized rubber envelope. This layout eliminates the need for auxiliary gaskets and prevents fluid tracking or galvanic erosion behind the flange, guaranteeing zero edge-leakage.
- Custom CAD Solutions with Compressed Lead Times: Slurry manifold retrofits and proprietary milling machinery often demand unique face-to-face clearances or non-standard flange attachments where stock components cannot mate. We deliver precise custom-to-drawing engineering tailored to your exact CAD prints, adjusting internal liner thickness and flange schedules. We merge premium manufacturing quality with fast production turnarounds to guarantee short lead times, preventing expensive concentrator plant downtime.
