##Custom Asymmetric Elbow Marine Rubber Expansion Joint Engineered for Restricted Spaces and Offset Piping Systems
Product Overview

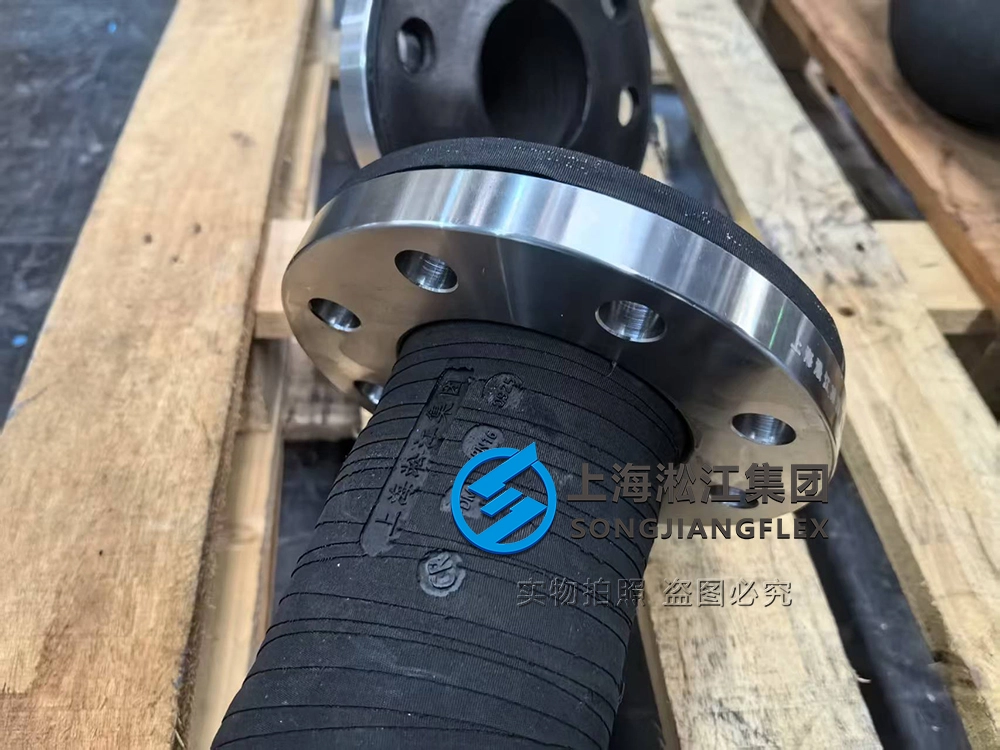

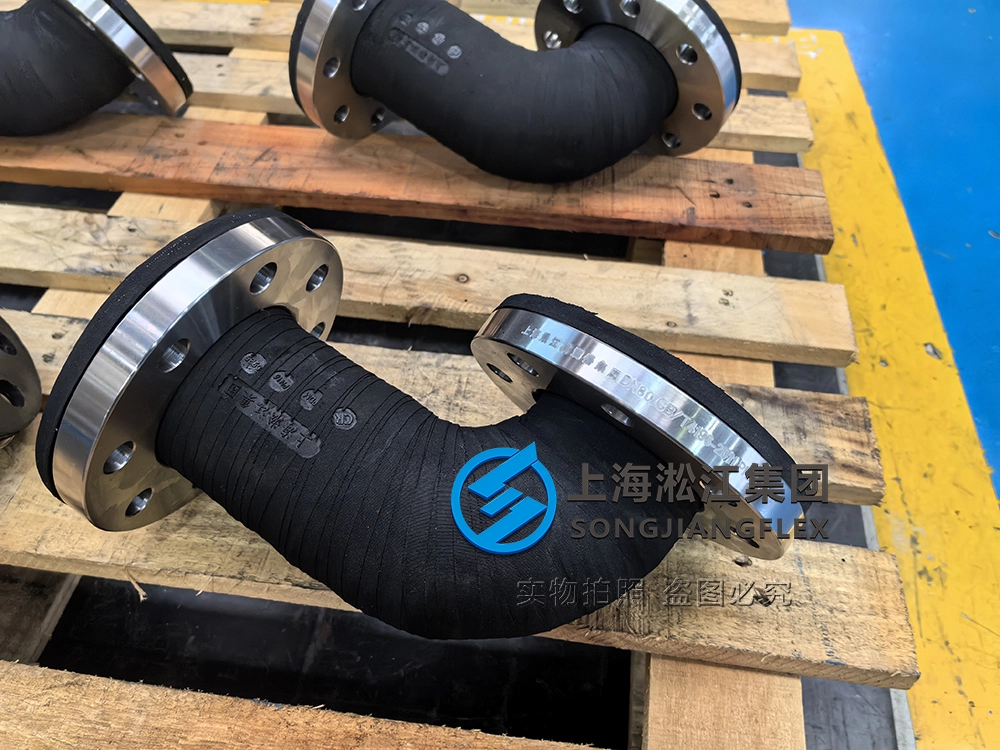

The CB/T 4196-2011 DN80 PN16 Marine Rubber Compensator is a highly specialized, hand-crafted flexible component custom-engineered for congested shipboard machinery spaces and marine piping networks. Built strictly to the CB/T 4196-2011 standard, this unique rubber expansion joint features an asymmetric elbow configuration—meticulously designed with one long leg and one short leg to bridge offset, non-aligned vessel pipelines where standard straight joints cannot fit.
This premium rubber flexible joint utilizes high-grade Chloroprene Rubber (CR), known for its excellent resistance to seawater, ozone, oil mist, and weathering. It is paired with solid SS316 (Stainless Steel 316) flanges using a dependable full-face sealing design, where the flat rubber sealing face extends to the exact outer diameter of the flange, matching the bolt circle perfectly to distribute sealing pressure evenly and prevent galvanic corrosion. The hand-crafted expansion bellow provides exceptional vibration isolation, protecting delicate onboard machinery from hull flexing and engine shocks. We understand that vessel dry-docking and repair schedules are time-critical. Therefore, we offer premium quality alternatives to legacy international brands with significantly shorter lead times. Beyond this specific model, we specialize in custom-to-drawing manufacturing to solve your most complex marine soft-connection layouts.
Key Features
-
- Custom Asymmetric Elbow Geometry: Hand-crafted with an asymmetric design (one side long, one side short) to provide immediate stress-free installation in tight, non-aligned marine piping configurations.
- Marine-Grade SS316 Flanges: Pure Stainless Steel 316 construction provides maximum protection against pitting and crevice corrosion in harsh, high-salinity maritime environments.
- Engineered Full-Face Sealing Face: The flat CR rubber sealing surface matches the full outer diameter of the SS316 flange, providing a massive contact area that optimizes bolt load distribution and eliminates the need for extra gaskets.
- Strict CB/T 4196-2011 Compliance: Formulated and dimensioned to meet China’s primary marine standard, ensuring seamless integration into commercial vessels and hassle-free inspection readiness.
- Rapid Delivery for Ship Repair Windows: We maintain an agile production system for complex customized components, delivering high-quality marine joints much faster than international suppliers to prevent costly vessel downtime.
Applications
-
- Marine Engine Room Piping: Isolating severe vibrations and thermal movements at the inlets and outlets of cooling pumps and auxiliary ship machinery.
- Seawater and Ballast Systems: Providing reliable, corrosion-resistant connections in restricted spatial layouts below the waterline.
- Shipboard Waste & Sewage Treatment Lines: Handling mildly aggressive marine fluids where CR elastomer and SS316 metallurgy are mandatory.
FAQ
Q: How does this CB/T 4196-2011 asymmetric elbow rubber compensator solve restricted-space installation issues on ships?
A: Marine engine rooms feature highly congested, non-linear piping layouts where alignment errors are common. Our premium rubber expansion joint satisfies these critical maritime engineering demands through:
- Stress-Free Misalignment Compensation: Standard straight joints fail prematurely if forced into angled offsets. Our hand-crafted asymmetric elbow utilizes an engineered unequal-length elbow profile, allowing it to naturally bridge misaligned pipelines without putting residual stress on delicate pump nozzles or hull structures.
- Maximum Sealing Surface Contact: Thanks to the full-face sealing architecture, the rubber face spans the entire diameter of the flange up to the outer edge. This creates a secure, leak-proof barrier against high-salinity seawater and aggressive internal fluids under heavy maritime vibrations.
- Bespoke Custom-to-Drawing Problem Solving: Ship refits rarely match standard catalog dimensions. Whether your vessel blueprints require a specific leg-length ratio, a unique bend angle, or non-standard flange drillings (JIS, ANSI, DIN), we execute 100% precise custom-to-drawing production to solve your soft-connection challenges perfectly.
- Premium Quality with Accelerated Turnaround: When a vessel is in dry dock, every day of delay costs thousands of dollars. We enforce strict tier-1 quality control parameters while guaranteeing a rapid delivery schedule, ensuring your specialized customized marine joints are onboard and certified before the ship sails.
