150LB DN80 PTFE Lined Rubber Expansion Joint with SS304 Control Rods for Chemical Reactor Discharge Pumps
Product Overview

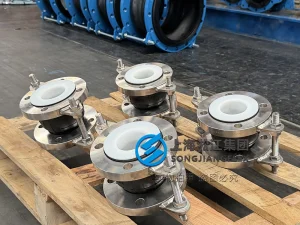

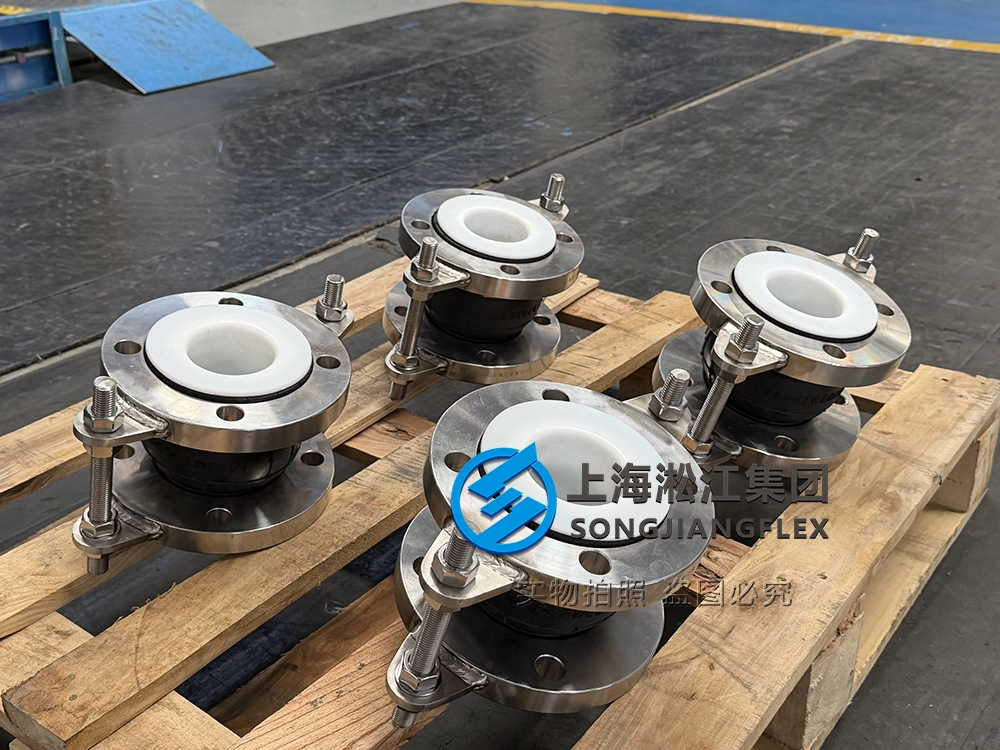

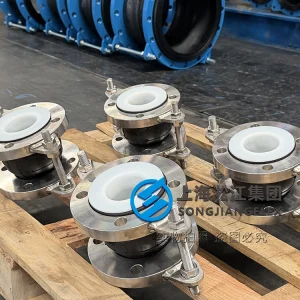

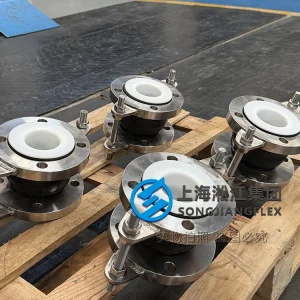

This DN80 150LB rubber expansion joint is configured with a seamless, heavy-duty PTFE lining, engineered specifically for the pressurized bottom discharge pumps of 2000L chemical synthesis reactors. Designed to handle aggressive chemical mediums and high-stakes fluid transfer, this single-sphere rubber flexible joint utilizes a premium EPDM elastomeric matrix wrapped around an impenetrable PTFE fluoropolymer shield, ensuring zero corrosive fluid contact with the raw Rubber Bellow body.

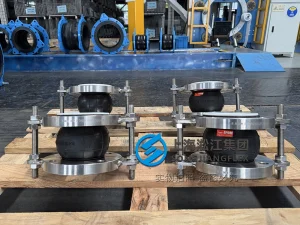

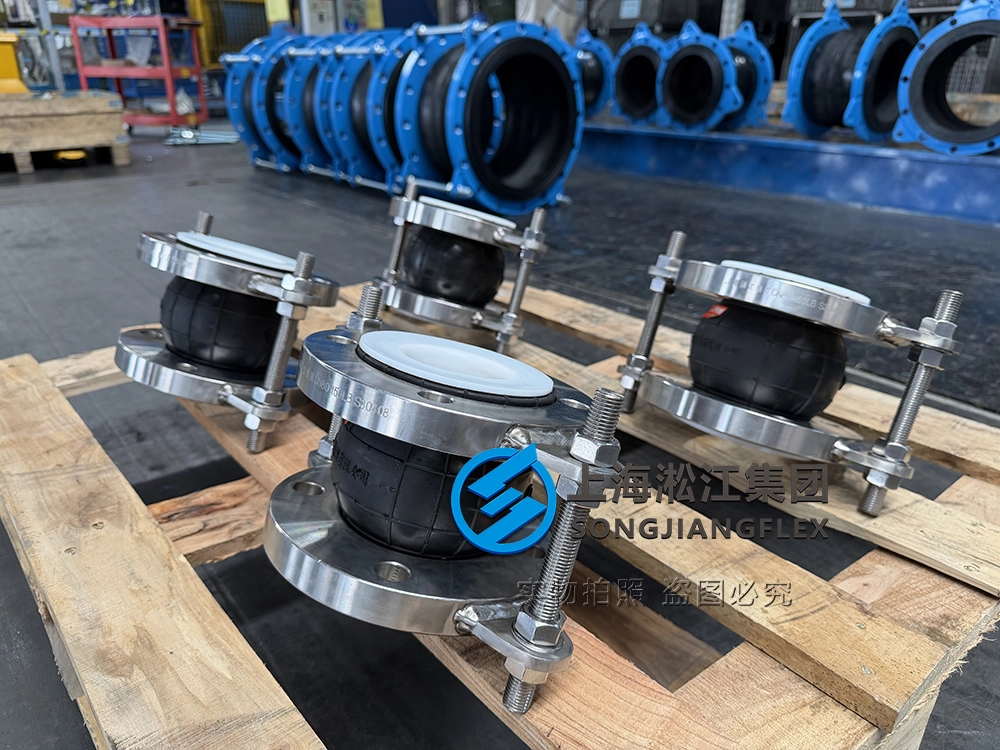

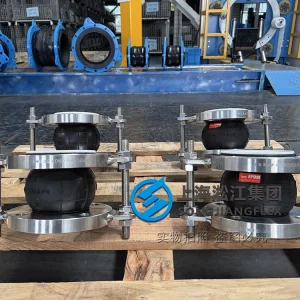

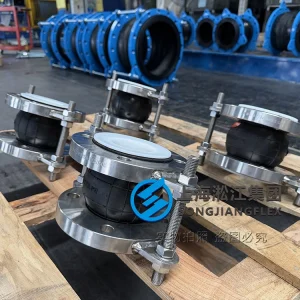

Featuring a standard 150mm face-to-face length, the assembly is equipped with solid SS304 (Stainless Steel 304) flanges and robust SS304 safety control rods to control excessive axial thrust generated during high-pressure reactor offloading cycles. The integrated expansion bellow lining is formed seamlessly over the full sealing face of the flanges, distributing bolt torque evenly and eliminating the need for independent gaskets that are prone to chemical leaching or blowout. We specialize in custom-to-drawing production, delivering high-integrity soft-connection solutions according to your specific CAD layouts with compressed production lead times.
Key Features
- Chemically Inert Seamless PTFE Liner: Extends completely through the bore and over the flange faces, providing universal corrosion resistance against aggressive acids, alkalis, and organic solvents.
- SS304 Superstructure & Tie-Rod Limits: Solid Stainless Steel 304 flanges and M-series control rods permanently contain axial thrust under 150LB pressure surges, preventing stress on reactor nozzles.
- High-Elasticity EPDM Body Damping: Absorbs high-frequency harmonic vibrations and mechanical water hammer shocks generated by localized high-pressure discharge pumps.
- Standardized 150mm Drop-In Geometry: Engineered to exact face-to-face specifications for a 100% stress-free replacement or drop-in alignment during routine chemical skid maintenance.
- Accelerated Production for Chemical Plants: Bypassing traditional procurement delays, our localized assembly manufacturing guarantees rapid delivery times to prevent costly chemical refinery downtime.
Applications
- Reactor Bottom Discharge Lines: Flexible connections on 2000L or larger synthesis vessel outfeed manifolds handling corrosive chemicals.
- Chemical Transfer Pump Manifolds: Isolation of intense vibrations and thermal movements at the suction and discharge ports of industrial chemical pumps.
- Corrosive Process Fluid Utility Skids: Reliable Rubber Bellow for high-purity dosing, filtration, and intermediate storage tank piping systems.
FAQ
Q: How does this PTFE-lined 150LB rubber expansion joint prevent liner collapse and leakage at the reactor pump interface?
A: Chemical reactor discharge systems apply a brutal combination of chemical attack, mechanical vibration, and pressure fluctuations to flexible connections. Our engineered rubber expansion joint satisfies these critical process parameters through:
- Delamination-Proof Full-Face Flange Shielding: In standard lined joints, the lining can slide or peel under the high fluid velocity of a discharge pump. Our precision forming process wraps the seamless PTFE lining over the full outer face of the Rubber Bellow flange, locking it mechanically between the companion steel flanges to ensure zero metal-to-fluid contact and zero structural movement.
- Rigid Thrust Containment via SS304 Control Rods: At 150LB (approx. 2.0MPa) pressure, internal hydraulic force generates massive thrust that tries to pull the pipeline apart. The integrated SS304 control rod units act as a solid boundary limiter, absorbing this kinetic force and preventing the expansion bellow from over-extending, which protects the expensive glass-lined or stainless steel reaction vessel nozzles from cracking.
- 1:1 Custom-to-Drawing Blueprint Correspondence: Chemical skids and 2000L reactors are highly customized. If your plant blueprints demand non-standard ANSI/ASME B16.5 flange drillings, alternative face-to-face dimensions, or integrated safety shields according to your CAD drawings, we execute exact custom manufacturing to deliver a perfect soft-connection solution.
- Short Delivery Windows to Minimize Production Loss: When a critical chemical production line stops due to gasket or pipeline failure, waiting months for European or American catalog brands is economically unacceptable. We enforce strict hydrostatic testing and quality metrics while maintaining agile manufacturing cells to guarantee rapid delivery, keeping your refinery schedule perfectly on track.
